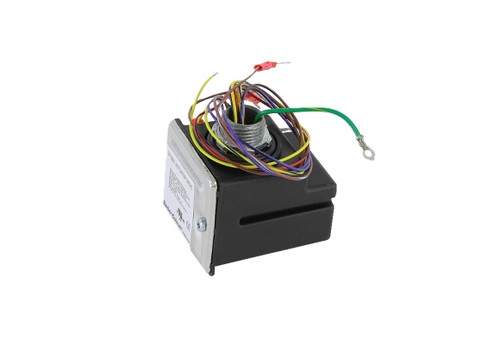

Schneider CP-9301 Actuator Drive 6-9 VDC

Schneider

No reviews

$271.32

SKU:: CP-9301
Condition:: New
Availability:: Usually Ships in 1 to 2 Weeks

Schneider CP-9301 Actuator Drive 6-9 VDC 24/120/240V

The CP-9301 and CP-9302 electronic actuator drives process a variable input signal from a controller to provide proportional control of an electric gear train actuator. The CP-9301 is preset at the factory for voltage input. The CP-9302 is factory preset for current input and has additional wiring for connection to an override switch, for those applications requiring an external override of the input signal. These drives are equipped with built-in jumpers and adjustable potentiometers, so that the type of input signal, deadband, input span, and start point may be reset in the field when necessary.

Please see technical tab for literature

Specifications:

Dimensions: 4-1/4in. high x 2-13/16in. wide x 2-5/32 in. deep (108x71x55mm)

Mounting: Directly onto an actuator. The drive may be mounted on either the left or right side of the actuator, in a conduit opening adjacent to the low voltage wiring compartment.

Output Connections: Color-coded leads with crimped screw terminal connectors. Purge override (input signal override) leads are color-coded pigtails.
