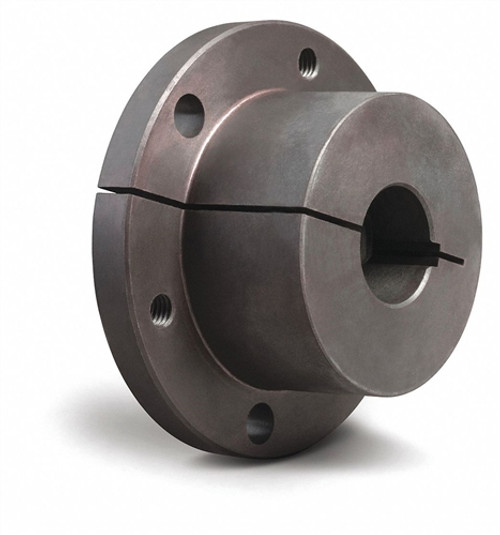

TB Woods SF158 Bushing

SFX1 5/8 SF Bushing

TB Woods SF158 Features:

• Quick Disconnect Bushing
• SF Bushing Size
• QD Bushings
• 1/2" Flange Thickness
• Conventional or Reverse Mounting
• 3 Bolt Holes
• 2" Screw
• 30 ft-lbs Screw Torque
• 3/8-16" Screw Thread
• 11,000 in Torque Capacity
• 2" LTB
• 3/8 x 3/16" Keyway
• 4.625 - 4-5/8" Flange OD
• 3-7/8" Bolt Circle Diameter
• 3-1/8" Barrel Diameter
• 1-1/2" Barrel Length
• Cast Iron

Technical Literature:

TB Woods Literature
