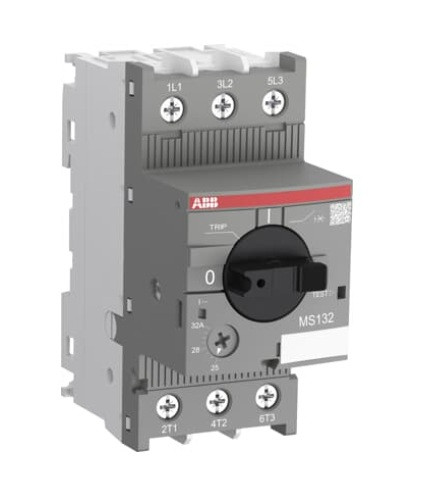

ABB MS132-25 Manual Motor Starter, 20-25A

The MS132-25 manual motor starter is a miniaturized 45 mm width devices with a rated operational current of Ie = 25.0 A. This device is used to manually switch on and off motors and to protect them safely and without the need for a fuse from short-circuits, overload and phase failure. Auxiliary contacts, signaling contacts, under voltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.

ABB MS132-25 Features:

• 20-25A Set Range
• 3 Phase 11 kW Operational Power
• 690Vac Operational Voltage
• 250Vdc Operational Voltage
• 25A Operational Current
• Housing IP20 Protection
• Screw Terminals
• Rotary Handle Actuator
• On/Off/Trip Position Indication

Technical Literature:

ABB Pilot Device Literature
