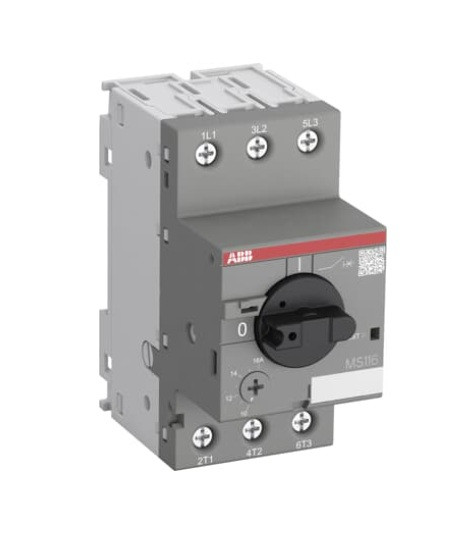

ABB MS116-10 Manual Motor Starter, 6.3-10A

The MS116-10 manual motor starter is a miniature 45 mm width devices with a operational current of Ie = 10.0 A. The manual motor starter is used for three- and single-phase applications. Auxiliary contacts, signaling contacts, under voltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

ABB MS116-10 Features:

• 6.3-10A Set Range
• 3 Phase 4 kW Operational Power
• 690Vac Operational Voltage
• 10A Operational Current
• 3 Pole
• Housing IP20 Protection
• Screw Terminal
• Rotary Handle Actuator
• ON/OFF Position Indication

Technical Literature:

ABB Pilot Device Literature
