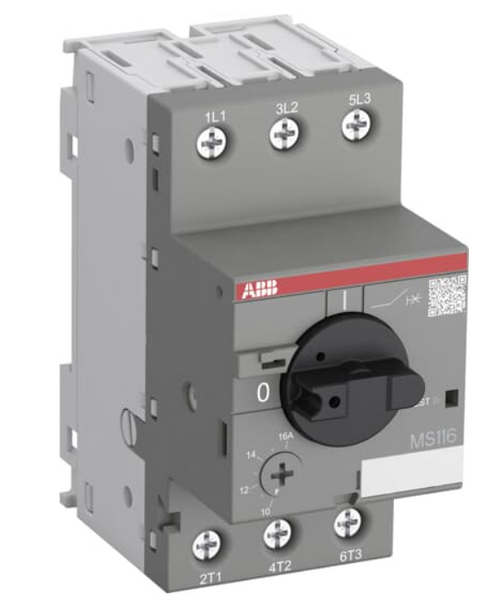

ABB MS116-12 Manual Motor Starter, 8.0-12A

The MS116-12 manual motor starter is a miniature 45 mm width devices with a rated operational current of Ie = 12.0 A. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

ABB MS116-12 Features:

• 8.0-12A Set Range
• 3 Phase 5.5 kW Operational Power
• 690Vac Operational Voltage
• 12A Operational Current
• 3 Poles
• Housing IP20 Protection
• Screw Terminals
• Rotary Handle Actuator
• ON/OFF Position Indication

Technical Literature:

ABB Pilot Device Literature
