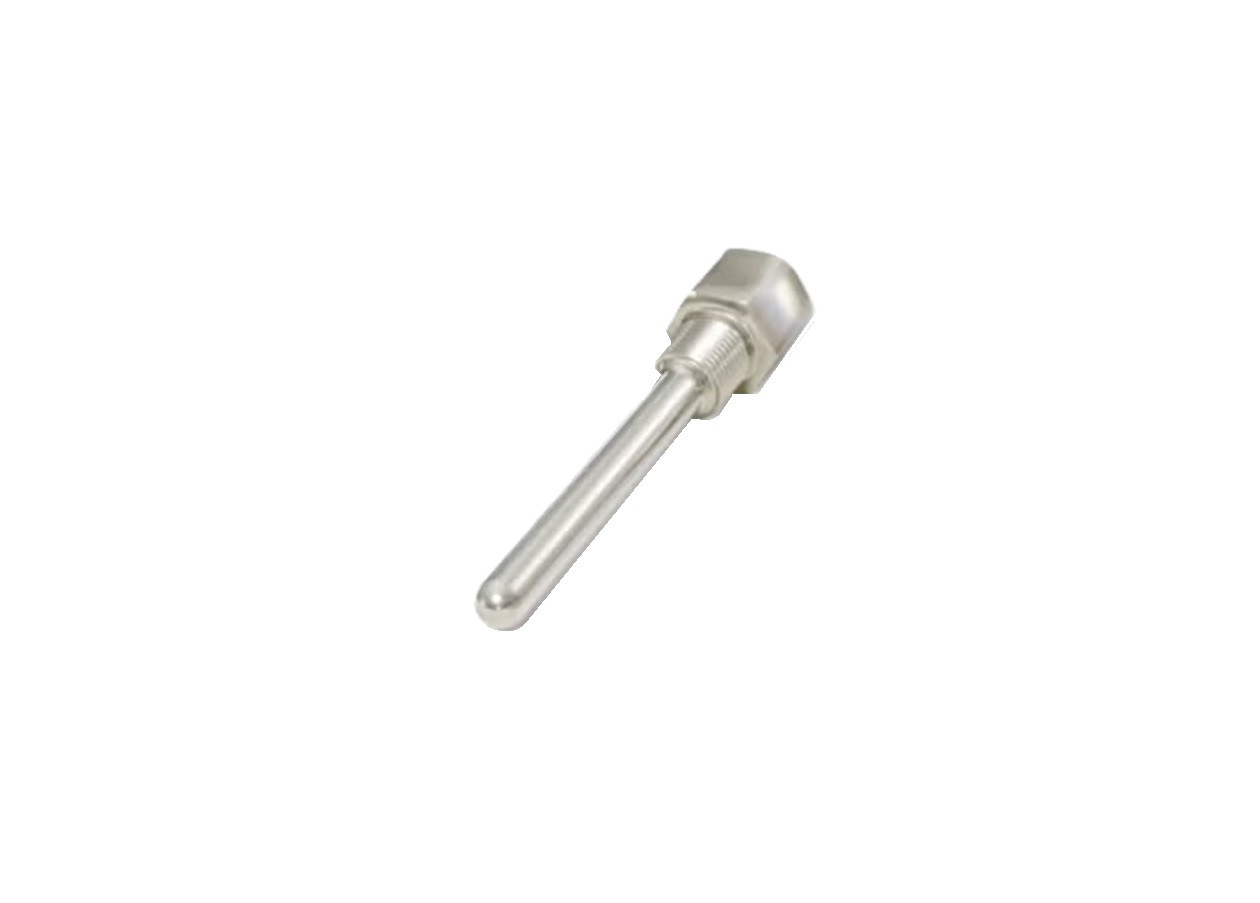

ACI A/2.5" Stainless Steel 2.5" 2 Part Thermowell

Stainless steel thermowell. 1/2" NPT and 1/2" MNPT. 304 SS Welded

ACI A/2.5" Features:

• High tolerance machining for no gap between sheath and probe for maximum heat transfer.
• Tensile Strength (304 Stainless Welded Tube): 75,000 PSI @ Ambient Room Temperature
• Allowable Stress (Factor of Safety = 4): 15,000 PSI (1034 Bar) (Weld Joint Efficiency = 0.80)
• Maximum Allowable Working Pressure: 6392 PSI (440.71 Bar) from -20ºF (-28.9ºC) to 100ºF (37.8ºC)
• Calculated Burst Pressure: 30,130 PSI (2077.39 Bar)
• Maximum Operating Temperature: 700ºF (371ºC) (Weld Integrity due to Corrosion may occur above 700ºF

Technical Literature:

ACI 2.5" Stainless Steel Thermistor Datasheet
