Antunes 803112704 RLGP-A Single Gas Pressure Switch, 10-50" W.C.

The Antunes RLGP-A Gas Pressure Switch, is a combination high/low gas pressure switch used commonly on industrial oven gas trains.

Antunes Controls High-Low and single gas pressure switches monitor gas pressure and cuts off the electrical control circuit when pressure drops below or rises above the desired set point. The high and low gas pressure settings are adjustable and all models are available in reset or recycle type.

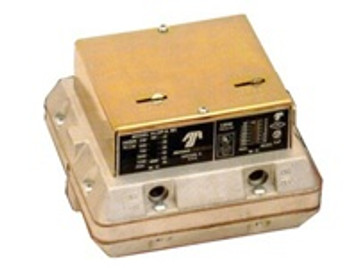

Antunes Controls Gas Pressure switches monitor gas pressure. The models are available in high pressure and low pressure single gas switches and also in a double Hi-Lo combination switches.

Each switch is adjustable within its range as shown on the range scale located on the front of the unit. The latch position in the reset models, and the lever indicator position in the recycle models, show whether the switch is on or off.

Antunes 803112704 Features:

• Mount Horizontally - Does Not Require Accurate Leveling
• Double Switch May be Ordered with any Combination of High or Low Pressure Ranges
• Select Range to Meet Your Requirements
• Setpoint Indication
• Rugged Die Cast Aluminum Housing
• Max. surge pressure 10 P.S.I.
• Max.ambient temperature 140ºF, 60ºC.
• Min. Ambient Temperature -40ºF, -40ºC.

Technical Literature:
