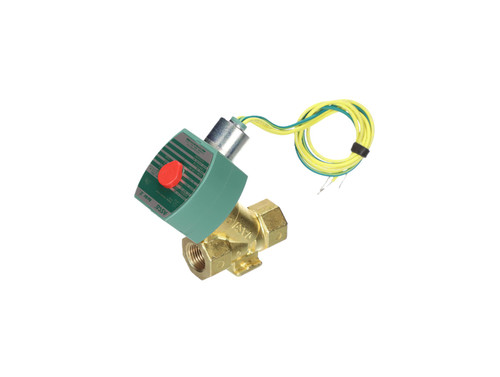

Asco 8222G047-120/60 Solenoid Valve, 2-Way, 1/2"

Asco 8222G047-120/60 Specifications:

• 1/2" NP Port
• 120Vac/60Hz
• 1/2" Orifice
• Cv= 3.6
• Normally Closed, Steam/Hot Water Service, Direct Acting
• Watt Rating: 10.1/H AC

Features:

• Hot water service to 210 psi differential @ 210°F; Steam sevice to 125 psi differential @ 353°F
• Brass Body
• Stainless Steel Seat, EPDM or PTFE Discs
• 302 SS Springs
• 305 SS Core Tube
• Brass or PTFE Piston

Technical Literature:
