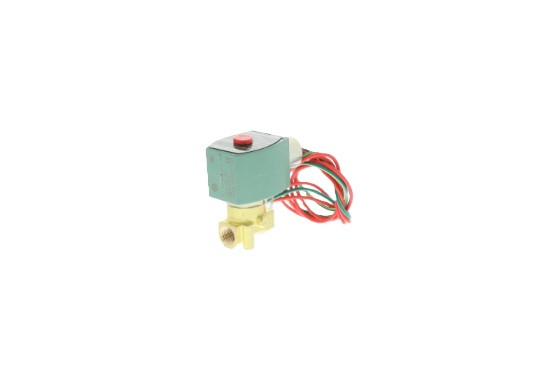

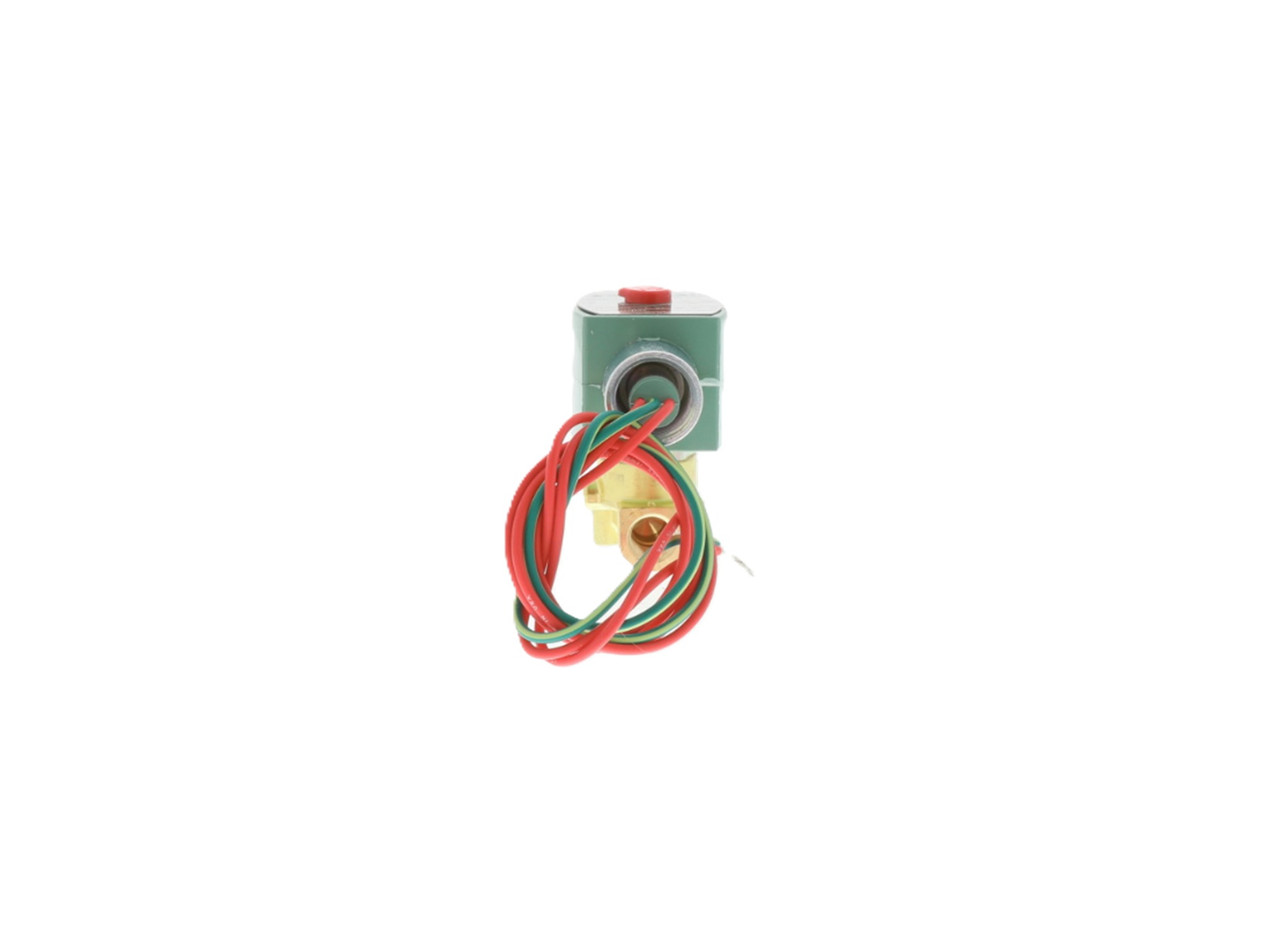

Asco 8262H013-120/60 Solenoid Valve, 2-Way, 1/4"

Asco 8262H013-120/60 Specifications:

• 1/4" NPT Port
• 120Vac/60Hz
• 7/32" Orifice
• Normally Closed, NBR Disc
• Cv= 0.73
• Watt Rating: 6.1/F AC // 10.6/H DC

Features:

• Used with air/inert gas, water, and light oil (up to 300 SSU) services at moderate temperatures.
• Max Fluid Temp is 180 degrees F
• Max Coil Wattage is 6.1.
• Brass Body
• NBR or Cast UR Seals and Discs
• 305 SS Core Tube
