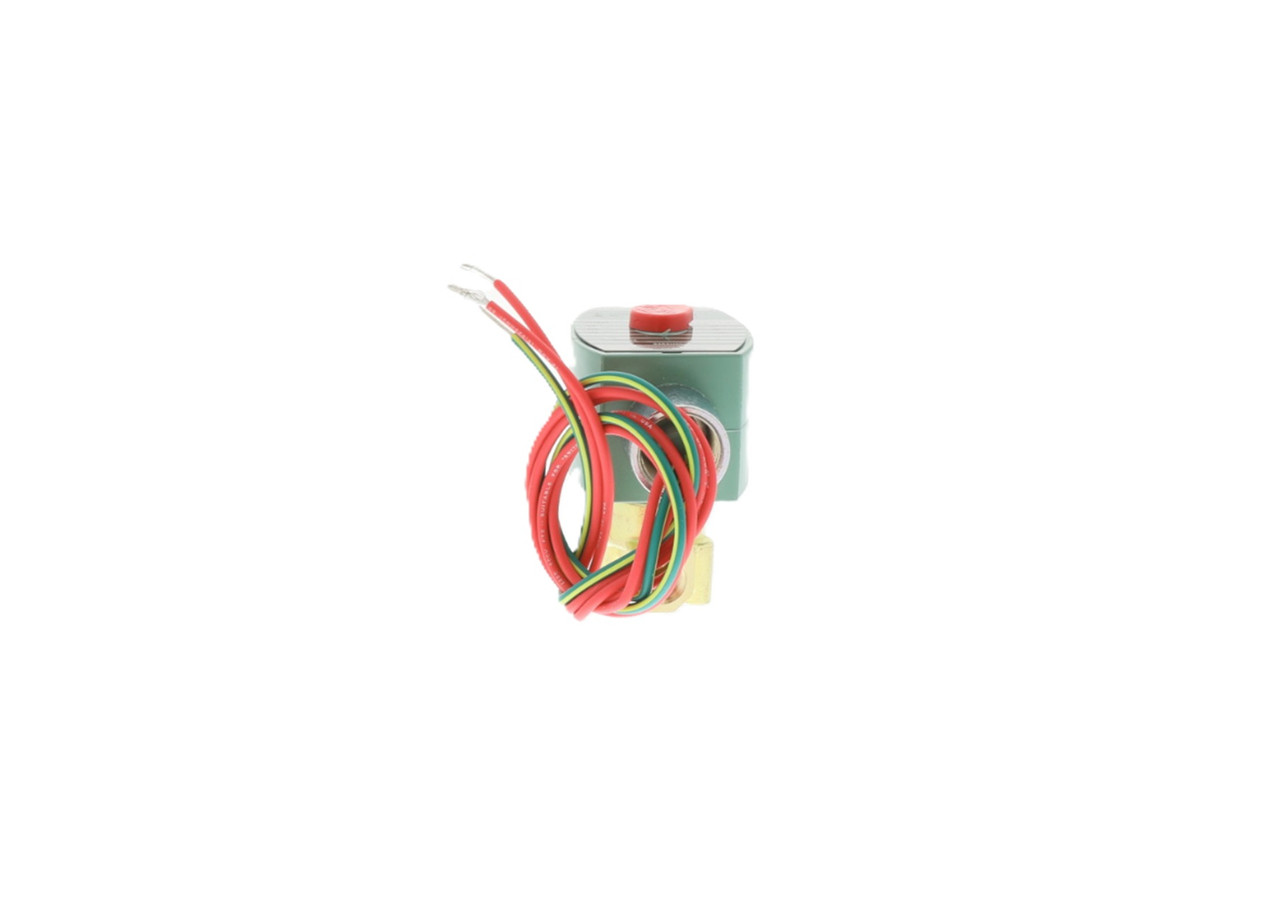

Asco 8262H202-120-60 Solenoid Valve, 2-Way, 1/4"

Asco 8262H202-120/60 Specifications:

• 1/4" NPT Port
• 120Vac/60Hz
• 5/32" Orifice
• Cv= 0.52
• Watt Rating: 10.1/F AC // 11.6/H DC
• Normally Closed

Features:

• Used for air/inert gas, water, and light oil (up to 300 SSU) services at moderate temperatures
• Max Fluid Temp is 180 degrees F
• Max coil wattage is 10.1.
• Brass Body
• NBR or Cast UR Seals and Discs
• 305 SS Core Tube
