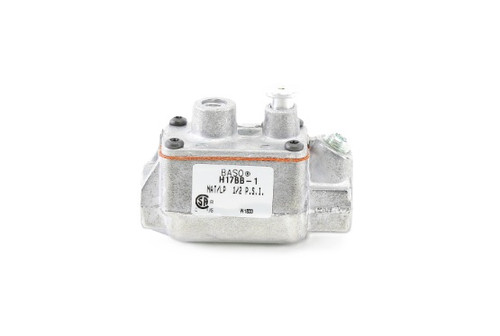

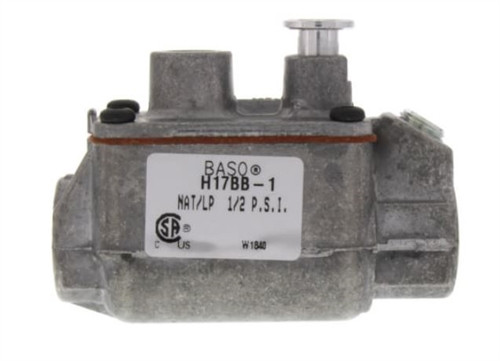

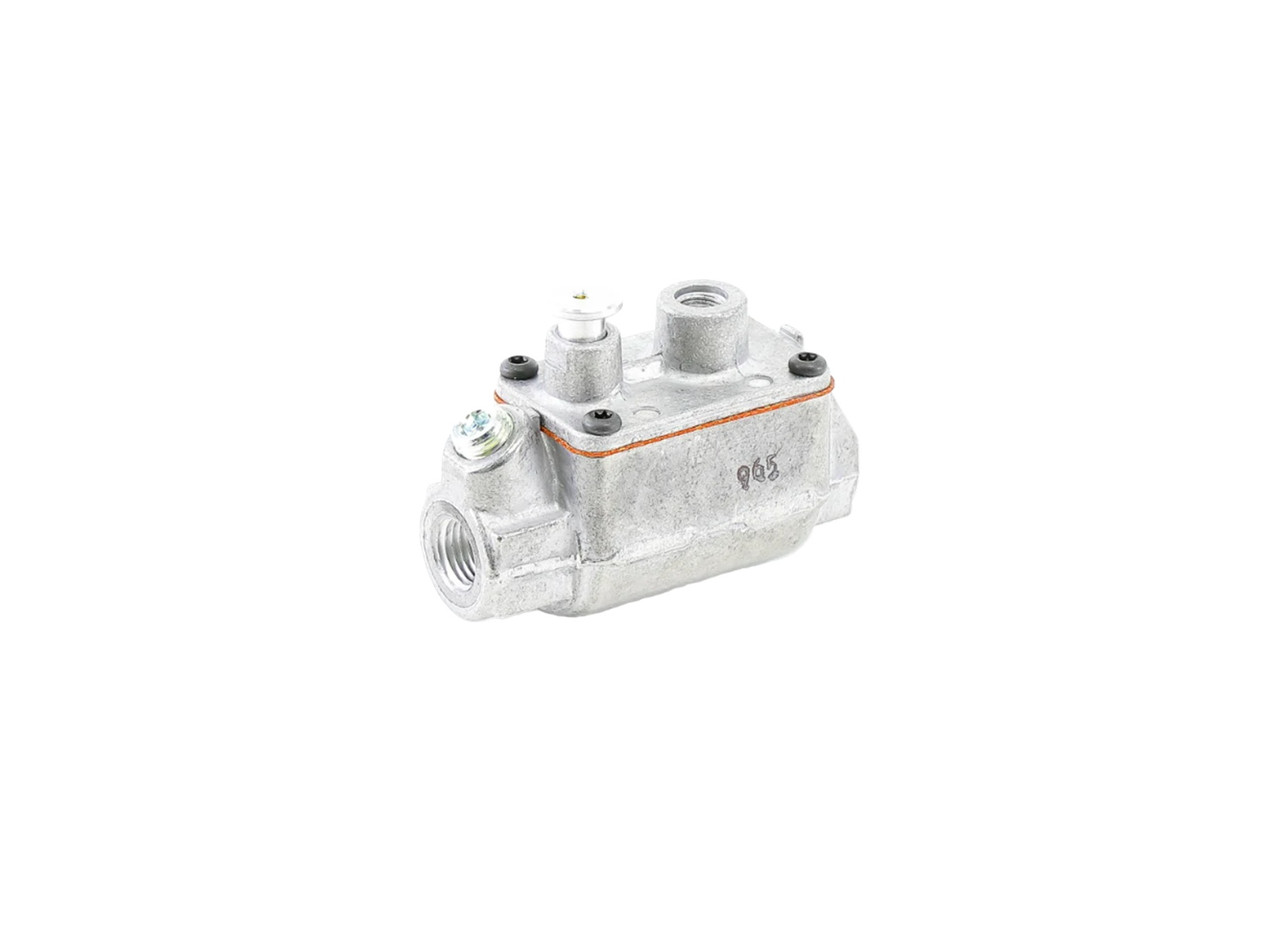

Baso H17BB-1C Automatic Pilot Gas Valve, 1/4"

The H17 Series automatic pilot valves provide safe lighting and complete shutoff in the event that the flame heating the thermocouple is extinguished. They are designed for standing pilot applications and can be used with natural gas and Liquefied Petroleum (LP) gas. Depressing the reset button allows gas to flow to both the pilot and main burner. Applications include room heaters, infrared heaters, stand-alone portable heaters, catalytic heaters, refrigerators, and similar applications.

Features:

• 0.5 PSI Operating Pressure
• Aluminum Body
• 300 DegF Maximum Ambient Temperature
• 94,000 BTU/Hr, 27kW Capacity
• High Temperature Power Unit

Technical Literature:

ºF - 300

ºC - 149

in. - 3

mm - 76

in. - 1.25

mm - 32

in. - 2.28

mm - 58
