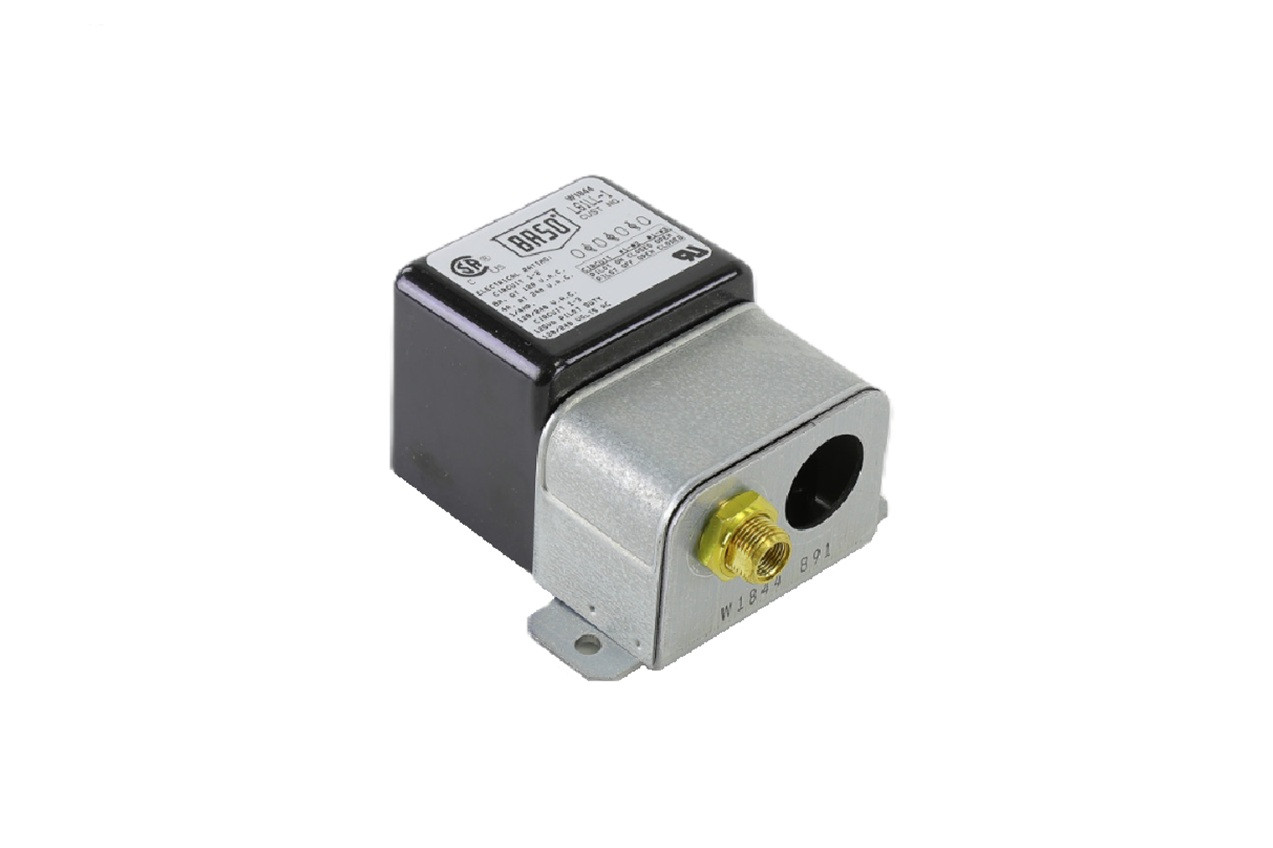

Baso L61LL-1C Pilot Automatic Safety Switch

The L61 and L62 Series BASO® Safety Shutoff Devices are for use on all gas-fired, standing pilot equipment that requires main burner shutoff when the pilot is extinguished. Typical applications include domestic central heating and commercial space heating appliances, as well as industrial processing equipment (for example, die-casting machines and degreasers).

Baso L61LL-1C Features:

• Maximum Ambient Temperature - 150ºF (66ºC)
• SPDT Automatic Reset Pilot Switch
• N.C Contact: Pilot Duty at 120/240Vac
• N.O Contact: 8A, 120Vac; 4A, 240Vac

Technical Information:

• BASO Product Catalog
• L61 Series Safety Shutoff Device Literature
