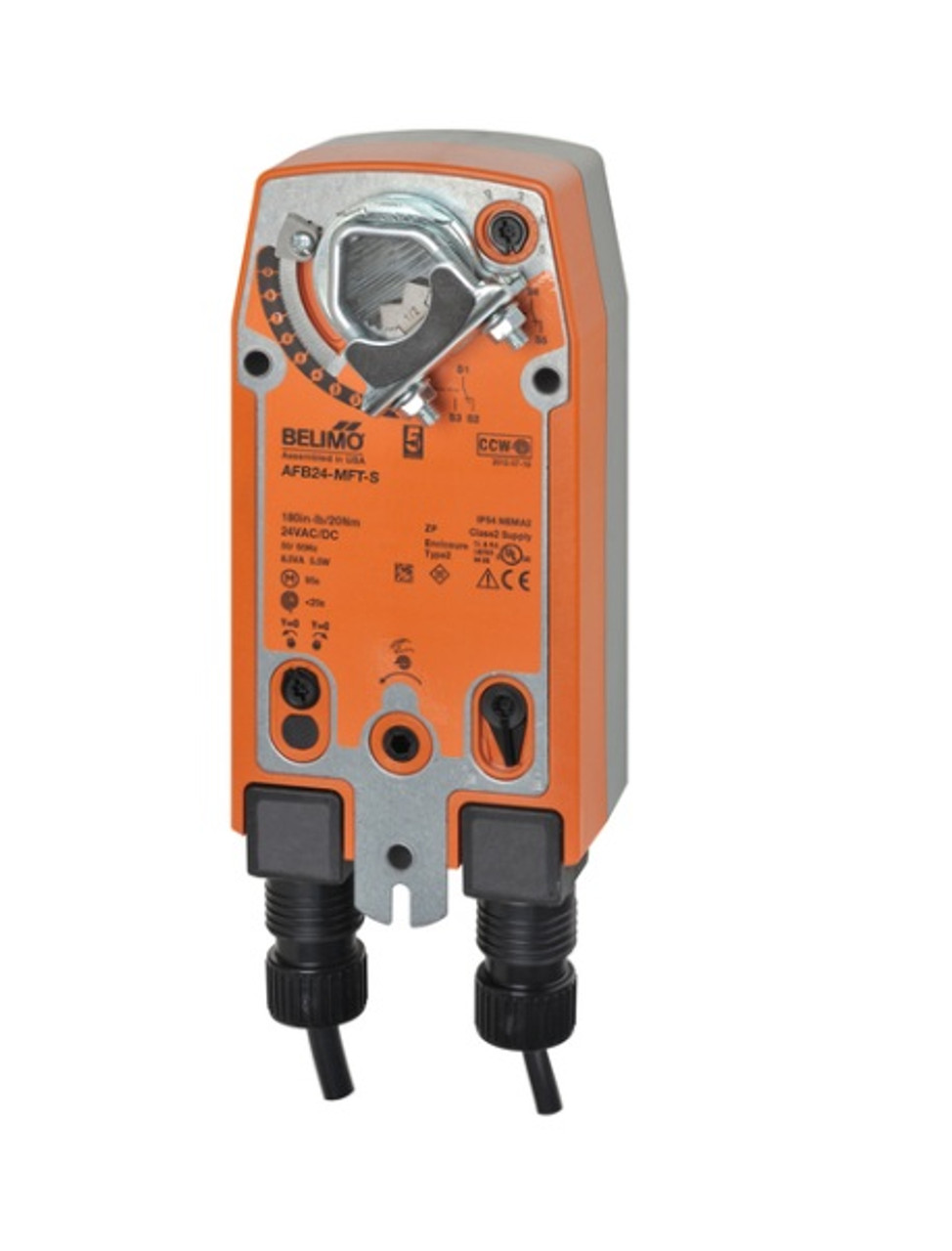

Belimo AFB24-MFT-S Damper Actuator, 24V

Spring Return, Modulating, NEMA 4

The Belimo spring return actuator provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator will operate at the same time with physical damper or valve mechanical stop and will use this point for its zero position during normal control operations.

Belimo AFB24-MFT-S Features:

• Contains 2 Auxiliary Switches
• 24 VAC 20%, 50/60 HZ, 24 VDC 10%
• Running: 6 W, Holding: 2.5 W
• 10 VA (Class 2 power source)
• 3 ft, 18 GA appliance cable, 1/2" conduit connector
• Electronic throughout 0 to 95 rotation
• Angle of rotation: max 95, adjustable 35 to 95 w/ZDB-AF2 US
• Torque:133 in-lb (15Nm) minimum
• Motor: Reversible with built-in switch
• Fail Safe: Reversible with CW/CCW mounting
• Visual indicator, 0 to 95 (0 spring return position)
• Motor: 150sec (default), variable (75 to 300 seconds)
• Spring: 20 sec
• 5 to 95% RH non-condensing
• Ambient temperature:-22F to 122F
• Storage temperature: -40F to 176F
• Housing: NEMA type 2 / IP54
• Housing Material: Zinc coated steel
