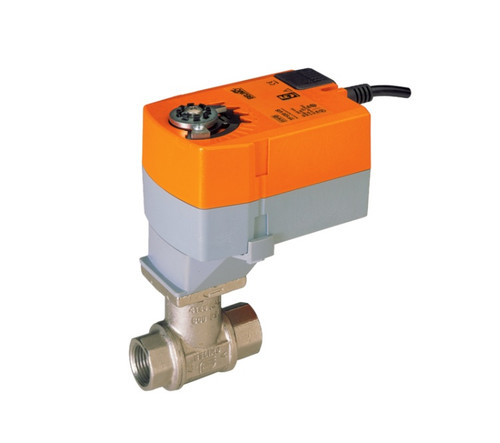

Belimo B209+TFRX120 CCV Control Valve, 1/2" 2 -Way, 0.8Cv

Spring Return On/Off Actuator, 100-240Vac, 50/60Hz

Used with On/Off, fail-safe control of dampers in HVAC systems.

Belimo B209+TFRX120 Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 2.5 Watt Power Consumption
• 1.3 Watt Rest Power Consumption
• 5 VA Transformer Sizing
• Mechanical Position Indication
• UL Enclosure, NEMA Type 2

Technical Literature:

Belimo B209 + TFRX120 Data Sheets
