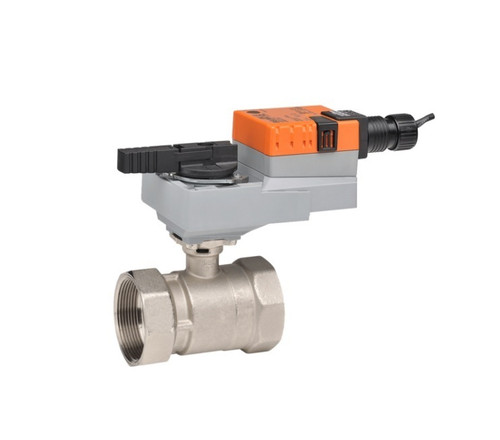

Belimo B210+LRX120-SR CCV Control Valve, SS Trim, 1/2", Cv 1.2" with Stainless Steel Ball and Stem

Non-Spring Return Modulating Actuator, 100-240Vac, 2 to 10 Vdc Feedback Signal

Belimo B210+LRX120-SR Features:

• Chilled or hot water, 60% glycol
• Flow characteristic: Equal percentage
• NPT Female Ends
• Material: Body-forged Brass, Nickel Plated
• PTFE Seats
• 2.5 Watt Power Consumption
• 1 Watt Rest Power Consumption
• 4 VA Transformer Sizing
• Mechanical, Pluggable Position Indication
• External Push Button Manual Override
• IP54, NEMA 2

Technical Literature:

Belimo B210+LRX120-SR Data Sheets
