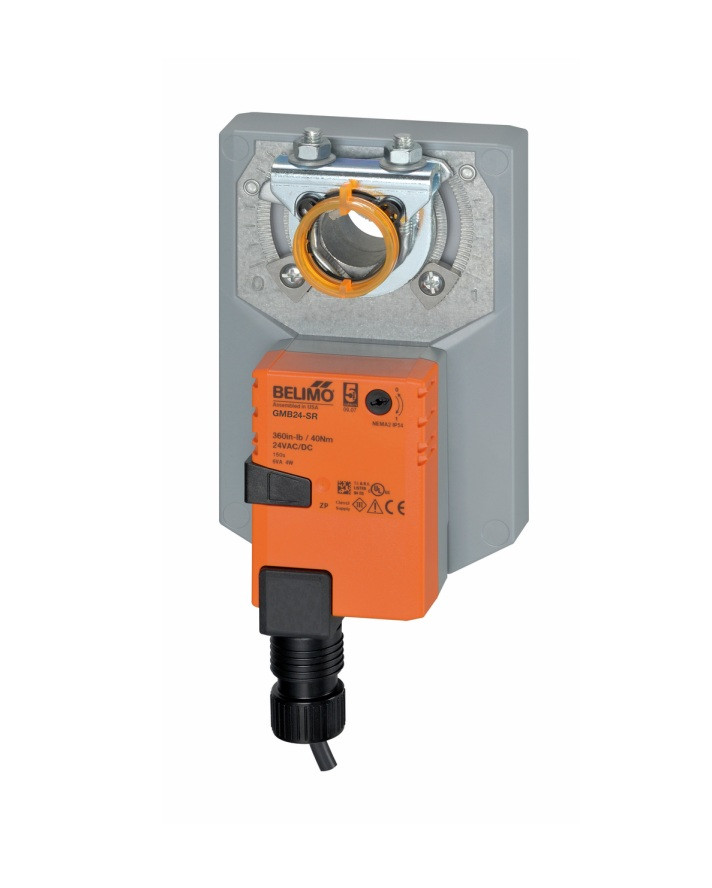

Belimo GMB24-3 Damper Actuator, 24V

Used for on/off and floating point control of dampers in HVAC applications.

Belimo GMB24-3 Features:

• On/Off, Floating Point, Non-Spring Return Actuator
• 24V AC/DC, 50/60Hz
• 4 Watt Power Consumption
• 2 Watt Rest Power Consumption
• 360 in-lb Torque Motor
• Mechanically, 30-65mm Stroke Position Indication
• 6 VA Transformer Sizing
• External Push Button Manual Override
• -22 to 122 Degree Ambient Temperature
• IP54, NEMA 2
