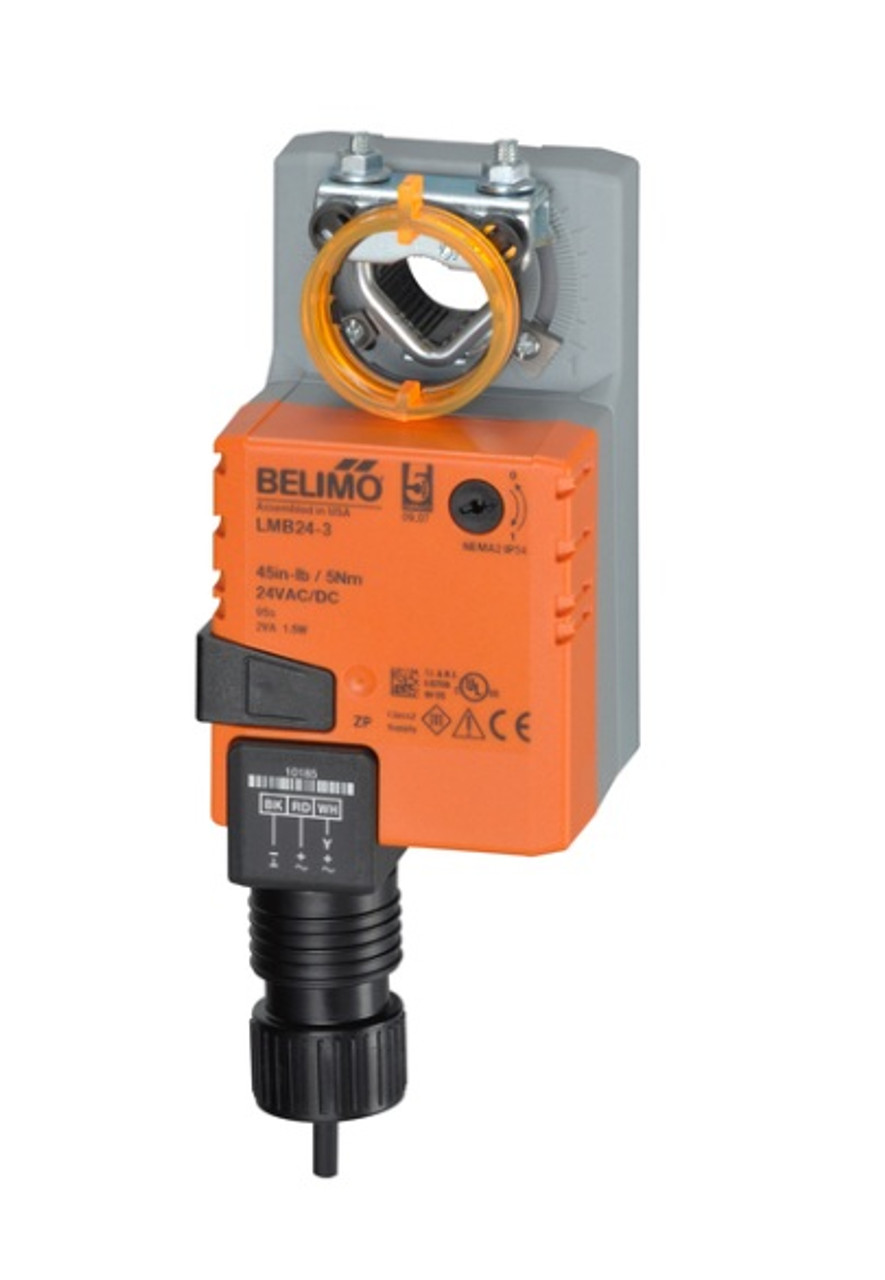

Belimo LMB24-3 Air Damper Actuator, 24V

This Belimo Actuator is used for on/off, floating point control of dampers in HVAC applications.

Belimo LMB24-3 Features:

• 24V AC/DC, 50/60Hz
• 45 in-lb Torque Motor
• Mechanically, 30-65mm Stroke Position Indication
• -22 to 122 Deg F Ambient Temperature
• 1.5 Watt Power Consumption
• 0.2 Watt Rest Power Consumption
• 2.5 VA Transformer Sizing
• Angle of Rotation: Max of 95 Deg, Adjustable with Mechanical Stop
• IP54, NEMA 2

Technical Literature:
