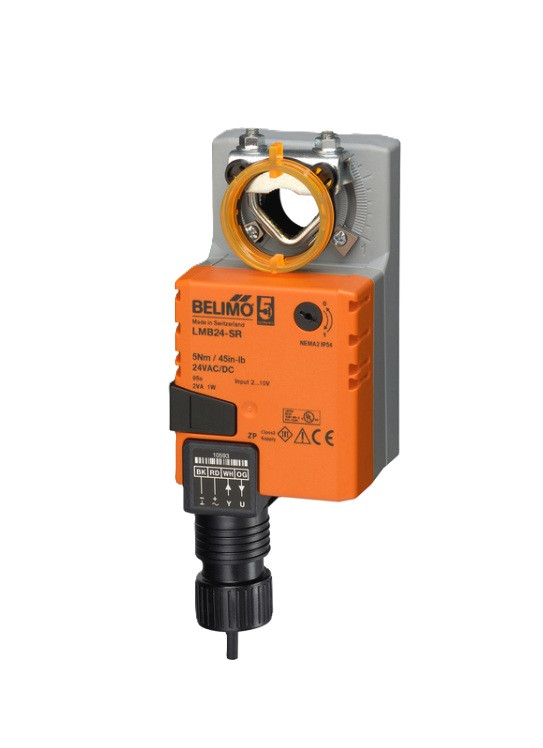

Belimo LMB24-SR Air Damper Actuator, 24V

This Actuator is used for proportional modulation of dampers in HVAC applications. These actuators are mounted directly to a damper shaft from 1/4" up to 5/8" diameter, with use of universal clamp.

Belimo LMB24-SR Features:

• Non Fail-Safe Actuator
• Modulating Control Type
• 24V AC/DC, 50/60Hz
• 2-10VDC Feedback Signal
• 45 in-lb Torque
• Mechanically, 30-65mm Stroke Position Indication
• External Push Button Manual Override
• 1.5 Watt Power Consumption
• 0.4 Watt Rest Power Consumption
• 3 VA Transformer Sizing
• IP54, NEMA 2
