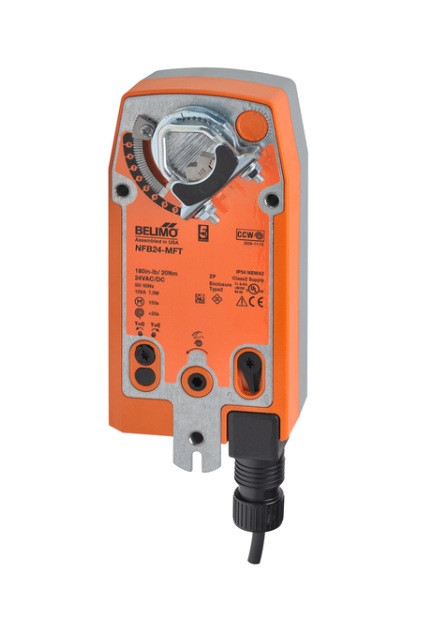

Belimo NFB24-MFT Spring Return Actuator, 24V

This specific actuator acts as a fail-safe, modulating control of dampers in HVAC applications.

Belimo NFB24-MFT Features:

• Spring Return Actuator
• MFT/Programmable Control Type
• 24V AC/DC, 50/60Hz
• 2-10VDC Feedback Signal
• 4-20mA Operating Range
• 90 in-lb Torque
• Mechanical Position Indication
• 5mm Hex Crank (3/16" Allen), supplied Manual Override
• 6.5 Watt Power Consumption
• 3 Watt Rest Power Consumption
• -22 to 122 Deg F Ambient Temperature
• 9 VA Transformer Sizing
• IP54, NEMA 2

Technical Literature:

Belimo NFB24-MFT Actuator Literature
