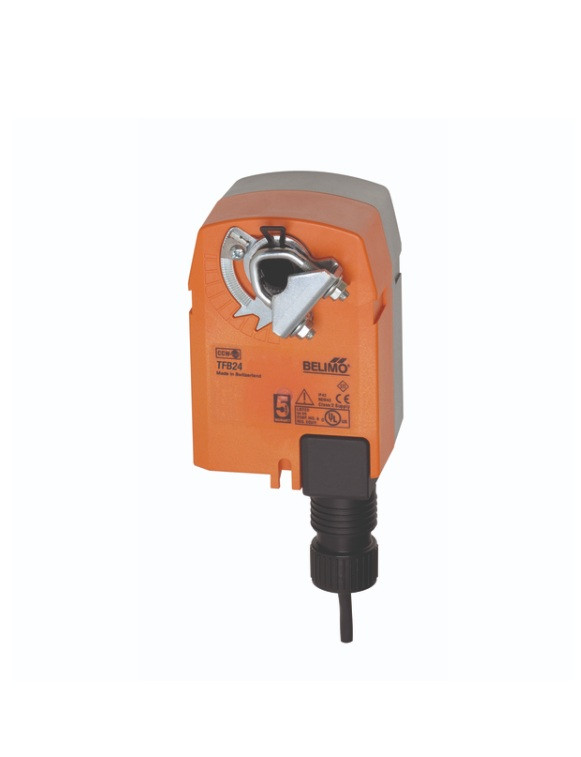

Belimo TFB24 Spring Return Actuator, 24V

Belimo TFB24 Actuators are used for on/off control input, fail safe control of dampers in HVAC applications. Controls are powered by on/off from an auxiliary contact, or a manual switch.

Belimo TFB24 Features:

• 24V AC/DC, 50/60Hz
• Spring Return Actuator
• On/Off Control Type
• 22 in-lb Torque Motor
• 75 s Running Time
• Mechanical Position Indication
• -22 to 122 Deg F Ambient Temperature
• 2 Watt Power Consumption
• 1.3 Watt Rest Power Consumption
• 5 VA Transformer Sizing
• Max of 95 Deg, Adjustable Mechanical Stop Angle of Rotation
• IP42, NEMA 2

Technical Literature:

Belimo TFB24 Actuator Literature
