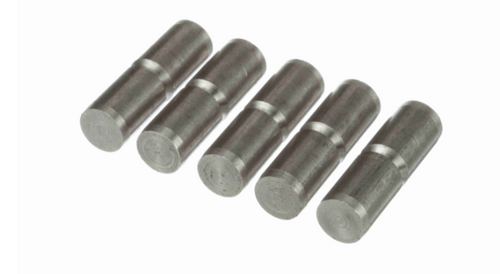

Browning 7Q Shear Pin, 28590 in-lbs

Browning 7Q Shear Pin. Rated at 28590 IN-LBS with the SHQ1 shear pin hub. Rated at 37,290 IN-LBS with the SHR1 shear pin hub. The necked down pin provides proper torque limitation ratings typical on industrial oven & washer conveyor systems.

Browning shear pin hubs and sprockets consist of three separate stock parts:

• Steel sprockets
• Hub assembly
• Malleable bushing

Browning 7Q Features:

• 2.25" Minimum SHQ1 Shaft Diameter
• 2.5" Minimum SHR1 Shaft Diameter
• SHQ1: 45.3 Hp @ 100 RPM
• SHR1: 59.1 Hp @ 100 RPM
• Pin OD = 1/2"
• Pin neck = 3/8"
• Pin length = 1-5/8"
