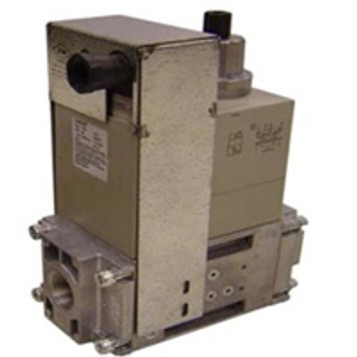

Dungs 226106 Flanged Dual Modular Valve DMV-DLE 5080/11

The Dungs Flanged Dual Modular Valve combines two automatic shutoff valves in one compact housing. The Dungs Gas Valve (V2) incorporates proof of closure valve seal overtravel and interlock. Both valves can be wired independently or in parallel.

• Valve 1 (V1) of the DMV-D and DMV-DLE series is fast opening and fast closing.
• Valve 2 (V2) of the DMV-D is fast opening while V2 of the DMV-DLE is slow-opening for smoother light-off.

Dungs 226106 Features:

• DN. 80 to ISO 7005-1 PN16
• 24Vdc
• 110VA
• NEMA Type 12
• Replacement Coil: #266151
• Replacement PWB: #223158

If creating a new assembly, you will need to purchase:

• 217-665 Visual Indicator
• 240-671 Conduit Adapter
• 210-319 DIN Connector
• Flanges

PART NUMBER HAS BEEN CHANGED - OLD PART NUMBER #226-106
