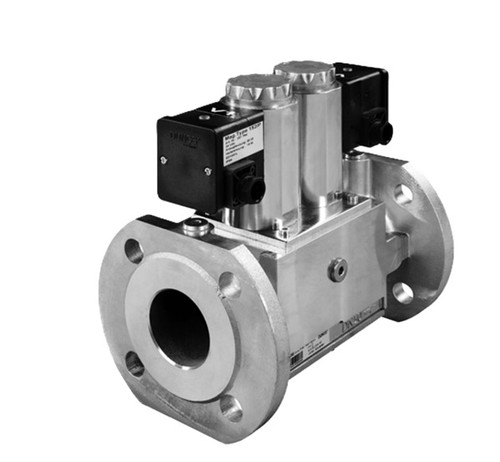

Dungs 254849 Dual Modular Valve DMV 50050

The DUNGS Flanged Dual Modular Valve (DMV) 500XX Series, combines two normally closed, automatic shutoff valves in one compact housing, which can be wired independently or in parallel. Valve 1 (V1) and Valve 2 (V2) are fast opening.

The DMV 500XX Series is recommended for industrial and commercial heating applications that require two safety shutoff valves in series. The DMV is suitable for natural gas, propane, butane, air and other inert gases.

Dungs 254840 Features:

• DN50 to ISO 7005-1 PN16
• 230 Vac Starting Power (W) 2x80
• Holding Power (W) 2x15
• (+10%/-15%) 50-60Hz
• IP54 Enclosure
• PWB NOT REPLACEABLE (Printed Circuit Board)

Technical Literature:

Dungs Dual Modular Valve DMV 50050

PART NUMBER HAS BEEN CHANGED - OLD PART NUMBER #254-849
