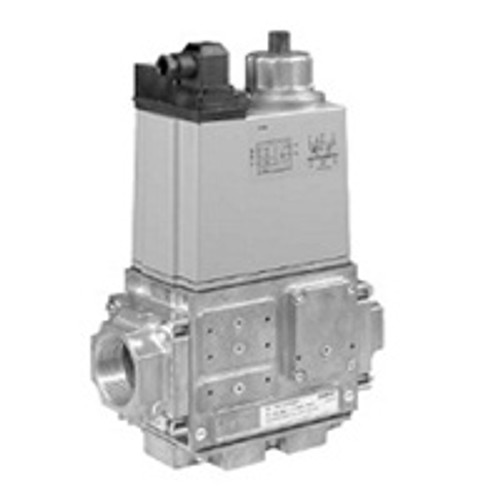

Dungs 256-172 DMV-DLE 525/11 Dual Modular Valve

The Dungs Dual Modular Valve DMV525/11 series combines two automatic shutoff valves in one compact housing. The Dungs Gas Valve (V2) incorporates proof of closure valve seal overtravel and interlock. Both valves can be wired independently or in parallel.

• Valve 1 (V1) of the DMV-D and DMV-DLE series is fast opening and fast closing.
• Valve 2 (V2) of the DMV-D is fast opening while V2 of the DMV-DLE is slow-opening for smoother light-off.

The maximum flow adjustment on V2 provides variable main flow on both models. Internal profiles and compact design optimize flow and provide a low pressure drop. Directly mounting the following accessories creates a compact valve train without additional piping:

• Pressure regulator
• High and low gas pressure switches
• Valve proving system
• Butterfly control valve

The DMV/11 is recommended for industrial and commercial heating applications that require two safety shutoff valves and proof of closure valve seal overtravel and interlock . The DMV Dual Modular Valve is suitable for natural gas, propane, butane, air and inert gases.

If creating a new assembly, you will need to purchase:

• 217-665 Visual Indicator
• 240-671 Conduit Adapter
• 210-319 DIN Connector


Does not include flange, however the flange is available for purchase, in size 2", available in NPT or RP. Please call for flange pricing.

OBSOLETE
