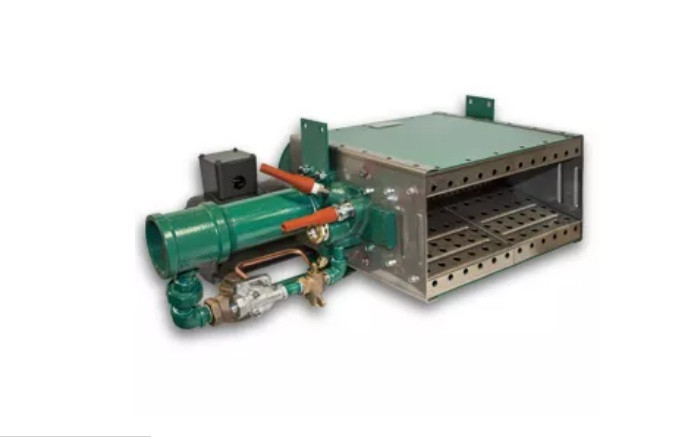

Eclipse Airheat Burner 160AH 1,600,000 BTU

Eclipse patented AH Burner features an integral blower and steel case for unmatched air heating performance.

(PRICING PROVIDED ON BASE MODELS)

• Low Nox Co and aldehydes
• Process airstream velocities from 250 to 6000 fpm, no profiling required
• Up to 40:1 gas turndown
• As little as 10% excess air at high fire; no oxygen is required from the process airstream
• Reliable operation - Burns natural gas or propane.
• Integral blower; no oxygen required from the process airstream
• Bottom mounted blower available for tight spaces

Base Model Configuration:

• Right Hand Horizontal
• Continuous Flange Mounting
• 1/3Hp 230/460/3/60/1800 Motor
• Less Blower Filter
• Flame Rod
• Standard Piping

Questions? Give us a call at 262-408-5583.
