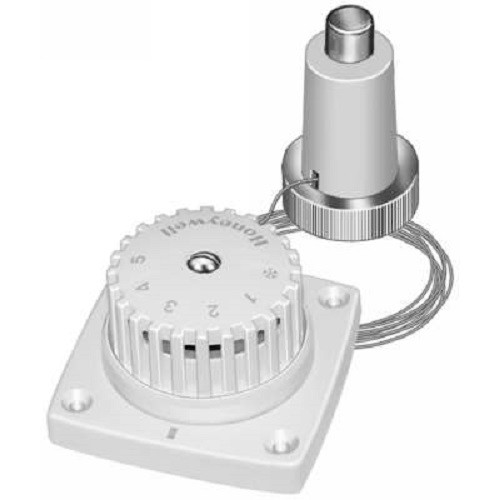

Honeywell Braukmann T104B1046 stat actuator remote setpoint & sensor 16' cap

Provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.

Honeywell T104B1046 Features:

• Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating.
• Designed with the higher capacity normally required by North American heating systems.
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
• Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
• Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
• Require no electrical connections.
• Meet ASHRAE Standard 102-1989.
• 40 mm collar diameter.

Honeywell T104B1046 Specifications:

• Collar Diameter (in.): 1 19/32 in.
• Temperature Range (F): 43 F to 79 F
• Use With Valve: V110
