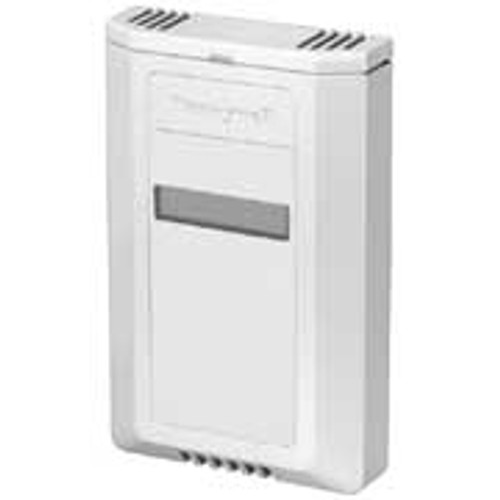

Honeywell C7232A1032 Infrared Carbon Dioxide Sensor, with No Display

This Honeywell product is a wall mounted Non-dispersive Infrared (NDIR) Carbon Dioxide Sensor without LCD Display. The Carbon Dioxide (CO2) Sensors and Controllers are stand-alone CO2 sensors, for use in determining ventilation necessity with HVAC controllers. The sensor measures the CO2 concentration in the ventilated space or duct. The sensors are used in ventilation and air conditioning systems to control the amount of fresh outdoor air supplied to maintain acceptable levels of CO2 in the space.

Features:

• 24 Vac / 24Vdc
• 1 minute - response time
• 5% full scale accuracy
• One: Normally Open SPST relay output
• 32 F to 122 F operating temperature range
• Six leadwires, 20 gauge, 6" long electrical connection
• 1 A @ 50 Vac / 24Vdc contact rating
• Non-dispersive Infrared (NDIR) sensor
• 5-1/16" high x 3-5/32" wide x 2" deep
