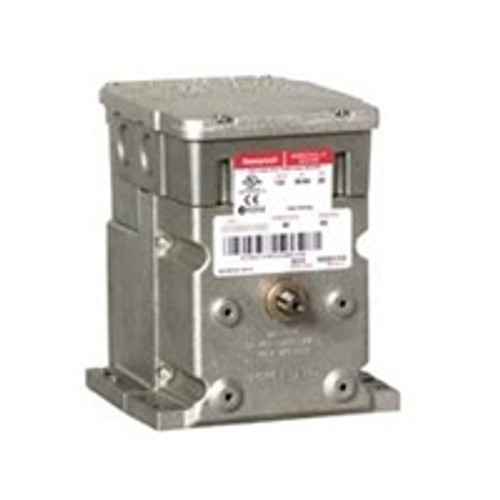

Honeywell M9194D1003 Mod IV Motor 24V

Non-Spring return modulating proportional control used with controllers that provide a Series 90 output to operate dampers or valves.

Honeywell M9194D1003 Features:

• Non-spring return fail safe mode
• Used for electrical applications
• Quick-connect terminals for electrical connection
• -40 to 150 deg F ambient temperature range
• 300 lb-in torque rating
• 160 deg factory stroke setting
• Zero internal auxiliary switch
• Adjustable; 90 to 160 deg, Symmetrical stroke
• 10mm square dual-ended motor shaft
• Proportional, 135 ohm control signal
• Power Consumption: Driving - 15 VA
• 6-7/16" high x 5-1/2" wide x 7-5/16" deep
