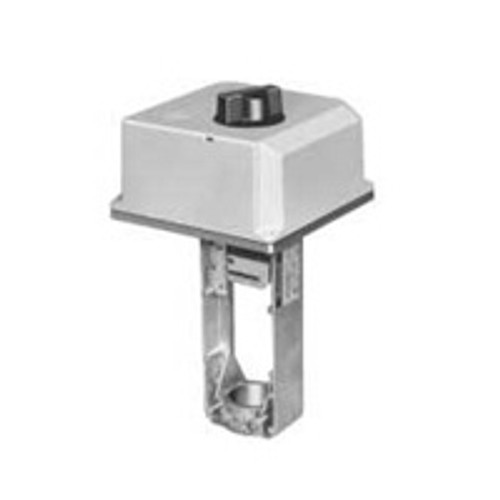

Honeywell ML7421A1032 Direct Coupled Actuator 24VAC

Direct coupled glove valve actuator provides floating or modulating control of chilled water, hot water or steam.

Honeywell ML7420A1032 Features:

• ABS plastic material
• 0 to 10 Vdc; 2 to 10 Vdc control signal
• 3/4" Stroke
• Two knockout holes for 1/2" conduit standard on actuator case cable
• Driving -- 12 VA Power consumption
• Actuator type valve
• Screw terminal connection
• 5 to 95% RH operating humidity range
• 14 F to 122 F ambient temperature range
• Zero internal auxiliary switch
• 300 F maximum fluid temperature
• 10-3/8" high x 7" wide x 7" deep
