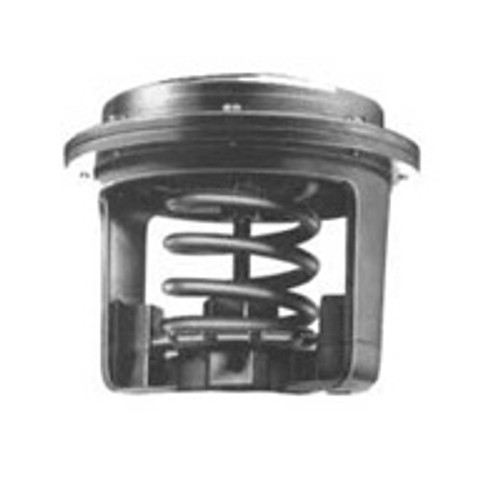

Honeywell MP953C1083 Pneumatic Valve Actuator

Pneumatic actuators provide proportional control of steam or hot or cold liquids in HVAC systems by operating V5011, V5013, and VGF valve assemblies.

Features:

• Direct Acting control
• Dual barbed fitting for 5/32" O.D. and 1/4" O.D. plastic tubing for air connections
• 25 psi maximum safe operating pressure
• 0 to 140 deg F temperature range
• Spring return fail safe mode
• Medium actuator force
• 4 psi to 11 psi spring range
• 3/4" Stroke
• Includes 311851-062 Stem extension assembly
• Used with Bonnet Size 1-3/8"
• Easily attached to valve
• 8" diameter x 6-1/2" high
