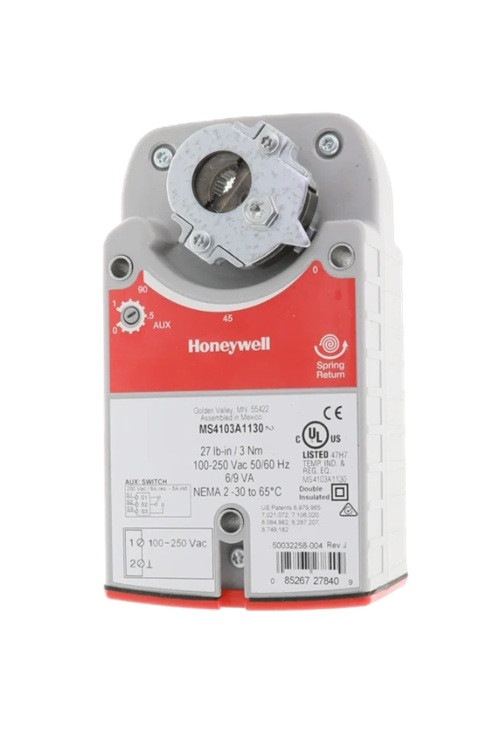

Honeywell MS4103A1130 Direct Coupled Actuator 100-250Vac

Spring return direct-coupled, line voltage actuator that accepts two position (SPST) control for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.

Features:

• Spring Return fail safe mode
• 250 Vac, 8 A res Switch Ratings
• 100 to 250 Vac supply voltage
• -22 to 149 Deg F ambient temperature range
• Power consumption: Driving - 6/9 VA
• 5 to 95% RH, non-condensing operating humidity range
• NEMA 2; IP 54
• Enclosed screw terminal strip (22 to 14 AWG) for electrical connection
• 1 Internal Auxiliary Switch
• 27 lb-in torque rating
• Plenum rated plastic housing materials
• 1/4 to 1/2" square shaft dimensions
• Includes mounting bracket, self-centering shaft adapter
