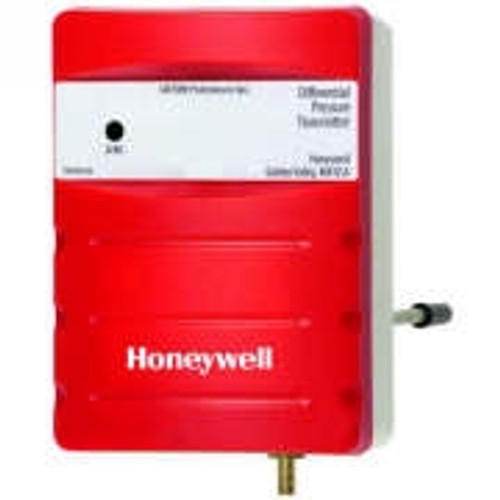

Honeywell P7640B1032 Differential Pressure Sensors

Pressure sensors are designed with field-selectable 4-20 mA, 0-5 Vdc, or 0-10 Vdc output. Pressure ranges can be set for either uni-directional or bi-directional.

Features:

• Duct mount, Integral 8" Probe
• No Display Included
• With auto zero calibration by push button or external contact closure
• 12 to 30 Vdc or 24 Vac Voltage
• Pneumatic: 1/4" Brass Hose Barb
• Electrical: Unpluggable screw terminal block
• 32 to 140 Deg F operating temperature range
• 3 psi Proof pressure
• 5 psi Burst pressure
• 4.5" high x 3.313" wide x 2.125" deep
