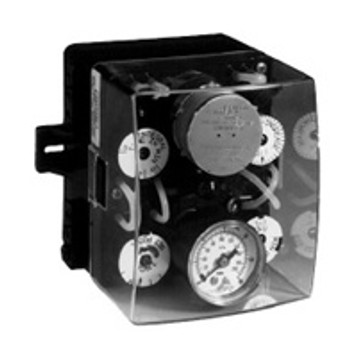

Honeywell RP920B1031 Proportional Control Dual Input

High capacity, single or dual input pneumatic controller used in conjunction with remote sensors to provide proportional (P) or proportional plus integral (P+I) control of temperature, humidity, pressure, or dewpoint for heating and air conditioning systems.

Features:

• Miniature diaphragm technology provides high degree of accuracy of reliability
• Direct Acting
• Direct Acting models can be converted to Reverse Acting function in field
• 40 to 130 F temperature range
• 5 to 95% Rh operating humidity range
• Dual Sensor inputs
• Mainline pressure range: 17 to 21 psi; Maximum safe mainline pressure range is 30 psi
• NO remote control point adjustment capabilities
• 5-7/8" high x 3-3/16" wide x 3-1/4" without cover x 3-3/8" deep with cover
