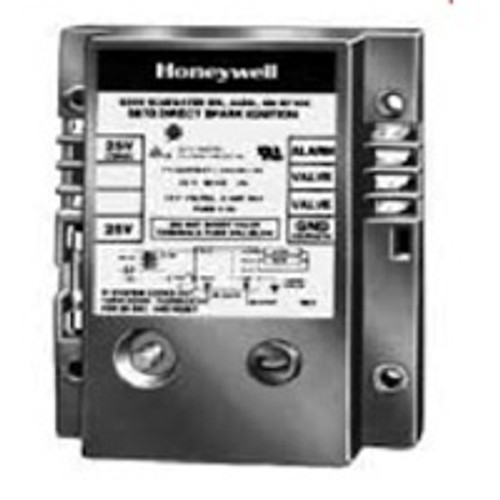

Honeywell S87D1012 Spark Module 11-sec Lockout, Dual Rod Any Valve

Provide electronic control of direct spark ignition systems used on gas fire furnaces, boilers, and other heating appliances.

Honeywell S87D1012 Features:

• Control ignition sequence and gas control operation
• Generate high voltage potential for main burner ignition
• Lockout after one trial for ignition if main burner fails to ignite
• Reset from thermostat after lockout

Honeywell S87D1012 Specifications:

• Temperature Range - -40 F to +175 F
• Dimensions - 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
• Frequency - 60 Hz

Technical Information:

• https://customer.resideo.com/resources/Techlit/Tec...
• https://customer.resideo.com/resources/Techlit/TechLitDocuments/69-0000s/69-0323.pdf
