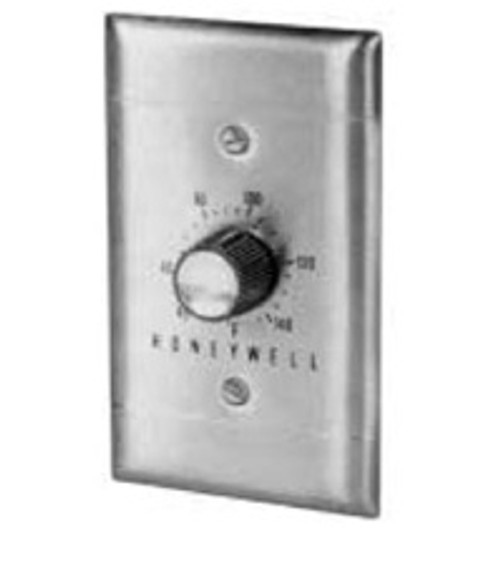

Honeywell S963B1037 Manual Potentiometer 480 ohm W927A-F

For checkout of W973 Logic Panels and W975 Satellite Sequencers.

Features

• Simulates the HEAT and COOL ramp signal of a T7067 Dual Set Point Thermostat and the economizer low limit function.
• Consists of 2 potentiometers and a resistor assembly mounted in a test box.
• Provides a heat/cool ramp signal from less than 2 Vdc (min) to 16.6 Vdc (max).
• Provides an Economizer low limit signal from 4.0 Vdc(equivalent to 45 F (7 C) at the C7046 Discharge Sensor) to 4.5 Vdc(equivalent to 69°F (21°C).
• Four test leadwires have color-coded bands with correspondingW973 terminal numbers.
• Leadwires have alligator clips for easy connection to W973 terminals.
• Dimensions - 4 1/4 in. high x 2 3/4 in. wide x 2 5/16 in. deep
