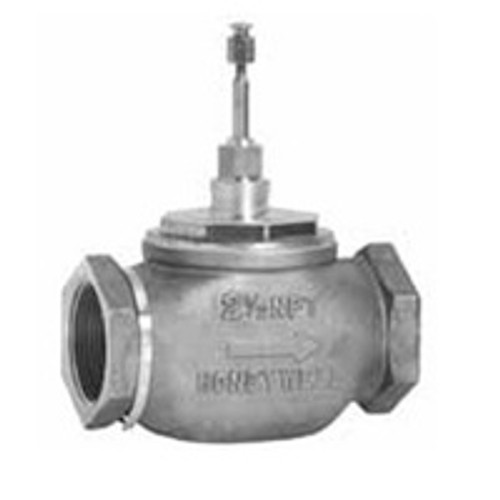

Honeywell V5011F1105 Globe Valve, 2-1/2", 2-Way

Used for two-position or modulating control of steam and water and glycol solutions (to 50 percent concentration) in heating or cooling systems.

Features:

• Direct acting
• High pressure steam models with stainless steel trim
• Spring-loaded, self-adjusting packing
• Stainless steel stem prevents corrosion
• Female NPT connection type
• Two-way, straight-through body pattern
• 2-1/2" pipe size
• 1-3/8" bonnet size
• 3/4" stem travel

• 63 Cv capacity
• Stem down to close valve action
• Red Brass body, Brass seat, Stainless steel stem
• 40 F to 337 F Fluid temperature range
• 250 psi at 100 F water; 217 psi at 250 F water; 15 psi steam max safe operating pressure
• 23" high x 1-5/8" wide x 5-5/8" deep
