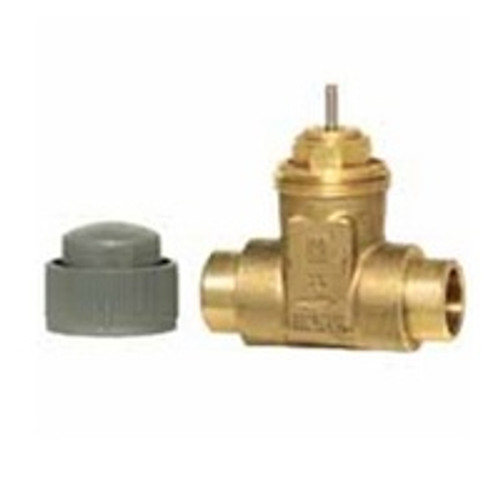

Honeywell V5852A2072 Sweat Valve, 3/4", 2-Way

Cartridge Globe Valves control hot and/or chilled water for VAV terminal fan coil units, small re-heaters and re-coolers in temperature controllers.

Features:

• Long stroke which allows a wider range of control
• Used with M6410A1029, M7410F1000, M6435A1004, M7435F1001, MP958
• Soft valve seats provides a low leakage rate
• Threaded plastic cover/manual handle allows manual operation
• Easily installed in areas where space is limited
• 235 psi max safe operating range
• Female Sweat connection type
• 4.9 Cv capacity
• 3/4" Pipe size
• 36 F to 230 F ambient temperature range
• Stem down to close valve action
• Brass body, Brass seat, Stainless Steel stem, brass cartridge
• Equal percentage flow characteristic
• 1/4" stem travel
• Actuation must be purchased separately
• 2-15/32" high x 1" wide x 3-3/4" deep

Technical Information:

https://customer.honeywell.com/resources/Techlit/T...
