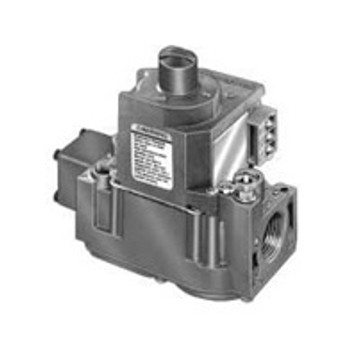

Honeywell V800C1052 Standing Pilot Gas Valve, 3/4 x 3/4"

Used on gas fired standing pilot appliances with 30 mV thermocouple. These gas controls include a manual gas valve, safety shut-off, single millivolt automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping, and thermocouple connector.

Honeywell V800C1052 Features:

• Includes pilot flow adjustment screw
• Two 3/4" x 1/2" reducer bushings; One 1/2" x 3/8" reducer bushing
• Complete safety shutoff on pilot flame failure
• LITE-RITE (OFF-PILOT-ON) lighting sequence
• Single stage application
• Straight-through, multi-tapped with 1/2" right and left outlets plugged body pattern
• Step Opening
• 1/2 psi pressure ratings
• 3/4" NPT x 3/4" NPT, with 1/2" NPT side outlets
• 60 Hz
• 24 Vac
• Combination screw and 1/4" male quick connects
• 32 F to 175 F operating temperature range
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
• 4-3/4" high x 4-1/16" wide x 3-3/16" deep

See technical tab for literature
https://customer.resideo.com/resources/Techlit/Tec...
https://customer.resideo.com/resources/Techlit/TechLitDocuments/60-0000s/60-0242.pdf
