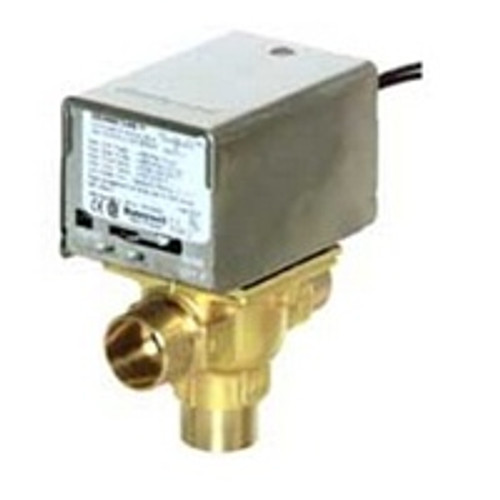

Honeywell V8044E1011 Zone Valve, 3/4" Sweat

Three-way, diverting On-Off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

Honeywell V8044E1011 Features:

• Includes manual opener
• May be installed without disassembling the valve
• Compact construction for easy installation
• Hydronic Control applications
• Sweat connection
• 3/4" pipe size
• 18" leads electrical connection
• 7.0 cV capacity
• Three-way diverting body pattern
• 24 Vac; Power consumption 7.7 VA
• Nominal Open - 30 seconds timing
• Spring return valve action
• 125F max ambient temperature
• 40 F to 200 F Fluid Temperature range
• Two-position actuation
• Port A Normally closed De-energized position
• N.O. SPST Auxiliary End Switch
• 4-13/16" high x 3-1/2" wide x 2-3/8" deep
