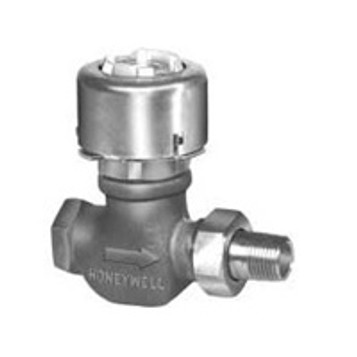

Honeywell VP525C1040 Unitary Two-Way Valve, 1/2"

Normally-open, single-seated pneumatic radiator valve, with straight through or angle body construction provides proportional control of two-pipe, hot water or steam systems. Replacement devices are available for most models.

Features:

• Easily replaceable actuator assembly for convenience of service
• Compact size for installation where space is limited
• Can be repacked without shutting down system
• Two-way body pattern
• 3 psi to 10 psi spring range
• Proportional normally open valve action
• 150 psi body pressure
• 30 psi maximum diaphragm pressure
• Steam, Water controlled fluid
• Unitary Valve type
• NPT - Angle Male Union connection
• Includes 2-5 psi spring is packed in box
• 5 % to 95 % RH operating humidity range
• 1/2" connection size
• Push on for 1/4" O.D. Plastic tubing air connections
• 2 CV Capacity
• 40 F to 240 F temperature range
• 4-7/8" high x 3-3/4" wide
