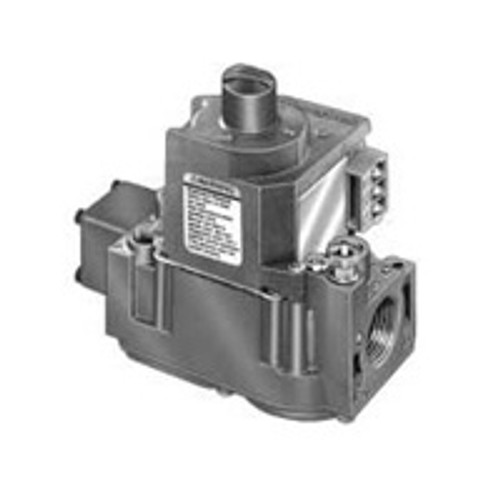

Honeywell VR8300A3500 Standing Pilot Gas Valve, 1/2 x 3/4"

No reviews Write a Review
$237.81
SKU:
VR8300A3500
UPC:
085267113748
Availability:
Usually Ships in 4 to 6 Weeks
Hurry! Only left

Honeywell VR8300A3500 Standing Pilot Gas Valve, 1/2 x 3/4"

The Honeywell Combination gas control is for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Honeywell VR8300A3500 Features:

  • Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.
  • Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
  • Meets codes requiring dual safety shut-off.
  • Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
  • All adjustments, wiring connections and pilot outlet are accessible from top of control.
  • Compatible with ECO connector.
  • LITE-RITE (OFF-PILOT-ON) lighting sequence.
  • Single Stage Application
  • Standard Opening characteristics
  • 3.5" w.c. pressure regulator setpoint
  • 1/2 psi pressure rating
  • 1/2" x 3/4" Inlet/Outlet size
  • Compression fitting for 1/4" OD tubing pilot gas outlet
  • 1/4" Quick-Connect male terminal electrical connection
  • 24 Vac voltage
  • 1/8" NPT with plug pressure tapping
  • Use Natural gas
  • 0 F to 175 F operating temperature range
  • Includes Natural to LP Conversion Kit; (1) 3/4 x 1/2" reducer bushing
  • 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
  • 5-3/8" high x 4-1/16" wide x 2-11/16" deep
