Johnson T-5800-1 Receiver-Controller Single Temp, Pneumatic

No reviews Write a Review
$1,303.90
SKU:
T-5800-1
Condition:
New
Availability:
Back Order
Hurry! Only left

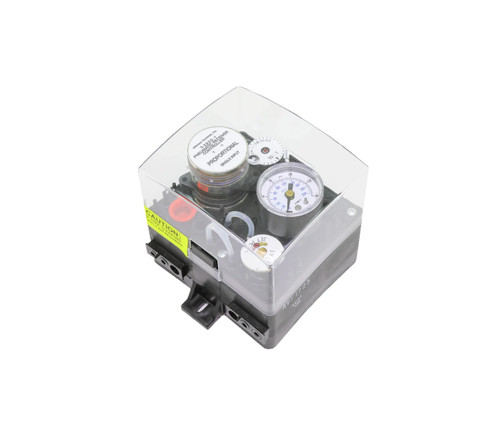

Johnson T-5800-1 Receiver-Controller Single Temp, Pneumatic

The T-5800 Pneumatic Receiver-Controller is designed for use with remote temperature, humidity, or pressure transmitters that are connected to a control variable (CV) input. The controller provides precise control of pneumatic devices. The T-5800 is capable of providing restricted supply air to low volume remote transmitters, reducing the number of air line connections needed between instruments to only one line. The “CV” input accepts the transmitted output of any pneumatic device with a calibrated output of 3 to 15 psig (21 to 105 kPa).


• available as single or dual input models with proportional or proportional plus integral (PI) control
• adjustments for gain, local set point, ratio, master input balance, and integral time are located on the controller face
• provided with hypodermic needle test points for pressure checks
• designed for surface mounting

specifications
