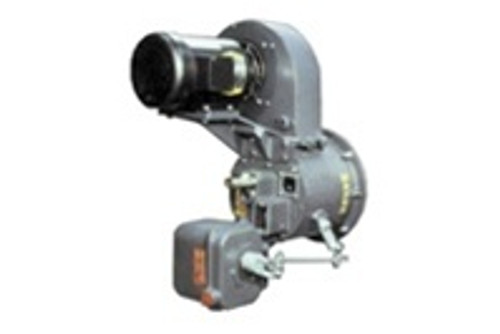

Maxon 14-50 Tube-O-Flame Burner, with Packaged Blower

The Maxon 14-50 Tube-O-Flame Burner, with Packaged blower is a 12" immersion tube firing burner rated at 3,800,000 Btu/hr. These natural gas burners are used commonly in industrial washers & indirect fired ovens. Comes equipped with integral 1-1/2 HP combustion blower. Spark ignitor, 7" mini flame rod, & 3/8" adjustable orifice included.

The Maxon Tube-O-Flame immersion burner is a great choice for heating process water tanks, due to its ease of mounting in standard schedule 40 pipe immersion tubes.

Base Model Configuration Options:

• ANSI Threaded Backplate
• Standard Adjustable Orifice and Observation Glass
• Flame Rod
• Natural Gas
• Include Mounting Ring
• No Adapter Flange
• Standard 230/460-3-60-TE Motor
• No Connecting Base and Linkage
• No Control Motor
• No Position Switch
• No Filter or Silencer

Gas inlet size = 2" NPT
