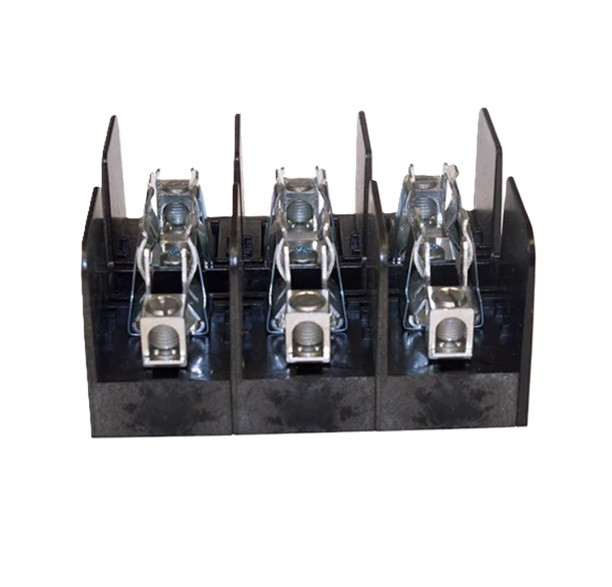

Mersen Ferraz 60608 Open Fuse Block, 60A

Class H, K and R Fuse Blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire.

Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.

Note: Fuses sold separately.

Mersen Ferraz 60608 Features:

• 3 Pole
• 3 Phase
• 600Vac/Vdc
• Q Fuse Holder Code
• Box Lug Connection Type
• Threaded Mounting
• 14 to 2 AWG
• Glass Reinforced Polycarbonate
• 7" L x 4.55" W x 2" H

Technical Literature:

Mersen 60608 Technical Specifications
