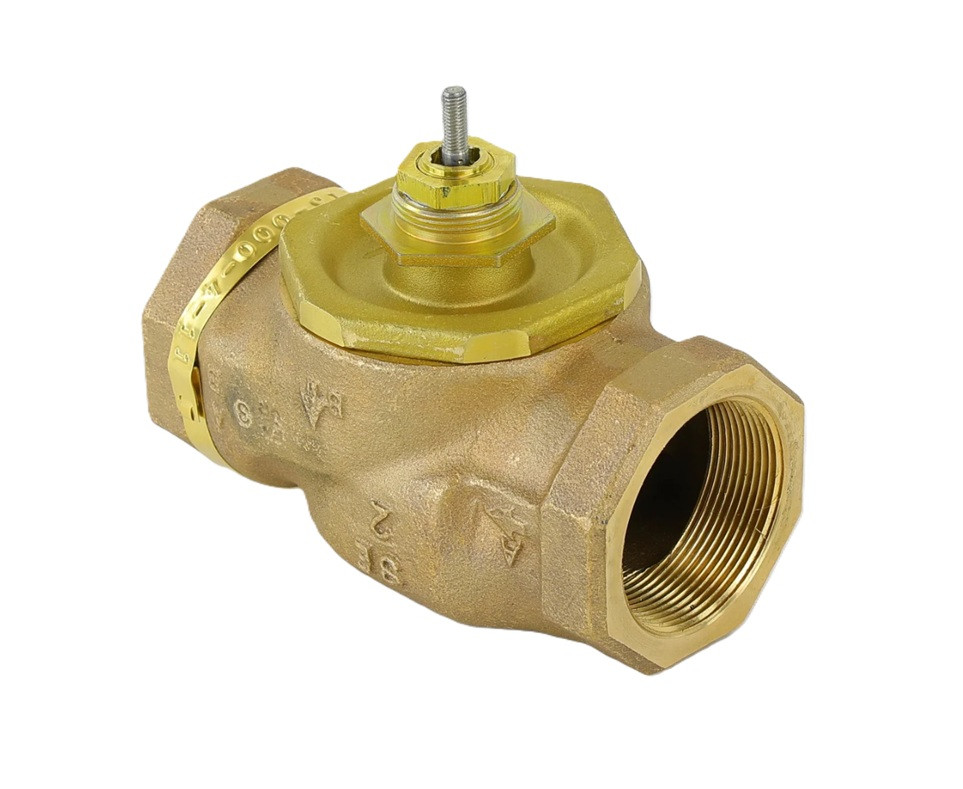

Schneider VB-7213-0-4-11 Globe Valve, 2"

VB-7213 series single seat, stem up open, two-way valves control water from 20 to 281°F (-7 to 138°C) or steam to 281°F (138°C) maximum in heating or air conditioning systems. They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage. A large selection of factory assembled combinations is available. Consult the TAC Valve Products Catalog, F-27384.

Schneider VB-7213-0-4-11 Features:

• 2" NPT
• 2-Way Mixing
• Bronze Body; Brass Trim
• Stem Up Open
• Equal Percentage Flow
• 40 Cv

Technical Literature:

Schneider Electric VB-2** Series
