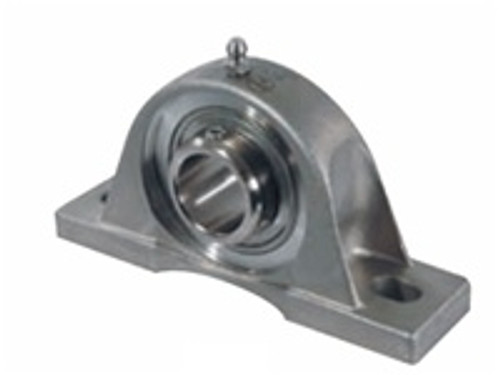

SealMaster MPD-16 CXU Medium Duty Pillow Block Bearing, 1" Shaft, Air Handling

The SealMaster MPD-16 CXU Medium Duty Pillow Block Bearing is a medium duty set screw ball bearing. ** Non-Returnable **

SealMaster MPD-16 CXU Features:

• 1" Shaft
• Ball Rolling Element
• Standard Felt Seal
• Solid Housing Base
• CXU = Air Handling
• Cast Iron, Two-Bolt Block

Please see Technical Tab for Literature and Drawing

• "A" Dimension: 1-3/4"
• "B" Dimension: 6-1/4"
• "C" Min.= 4-3/16"
• "C" Max.= 5-3/16"
• "D" Dimension: 2"
• "G" Dimension: 5/8"
• "H" Dimension: 3-7/16"
• "J" Dimension: 1-3/4"
• "K" Dimension: 7/8"
• Bolt Size: 1/2"
