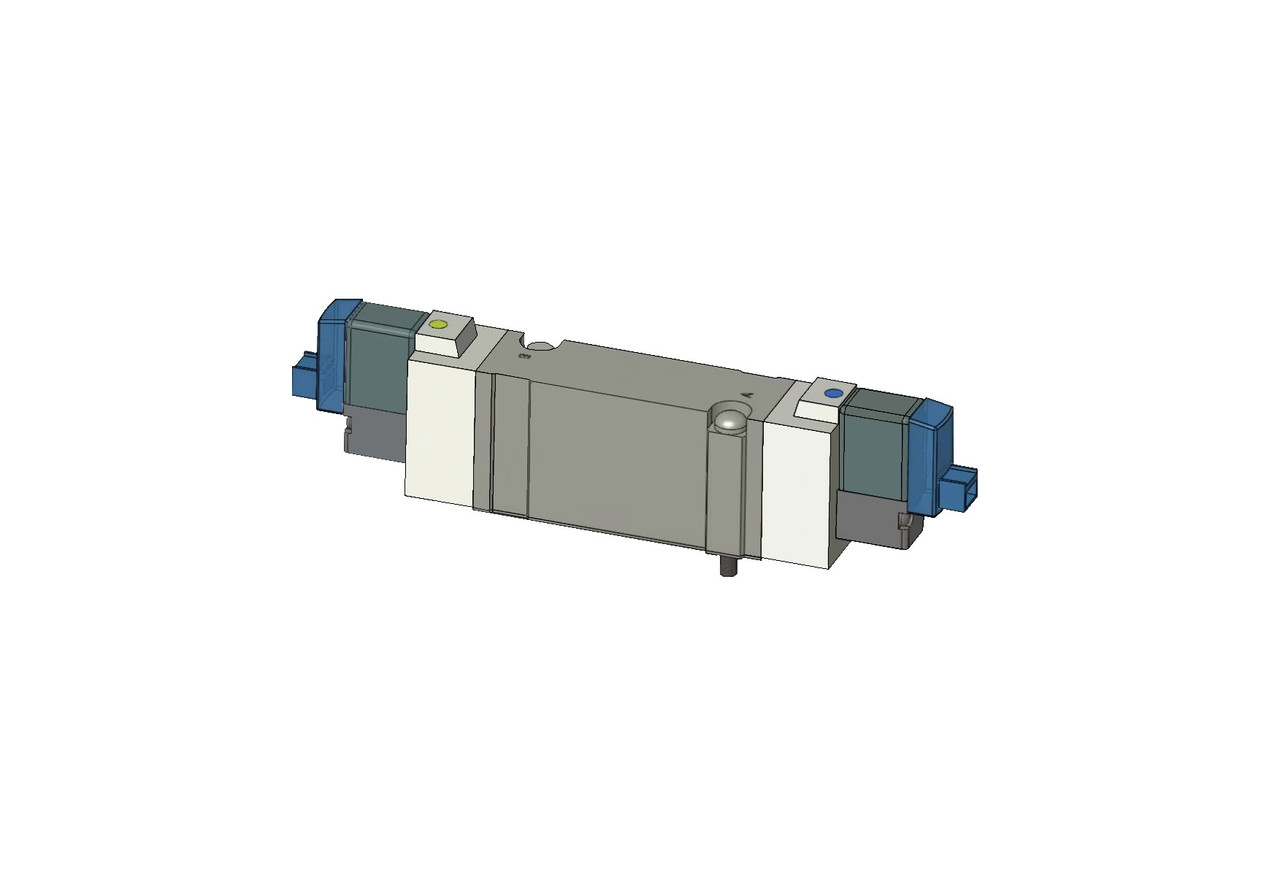

SMC SY7240-5LOZ Port Solenoid Valve, 24 VDC

SY Series Valves offer advanced and cost effective solutions. SY Series Valves provide high flow with lower power use, with a more compact design.

SMC SY7240-5LOZ Features:

• Operating Pressure Range:
  • Internal Pilot: 0.1 - 0.7 mPa
  • External Pilot: -100 kPa to 0.7 mPa
  • External Pilot, Pilot Pressure Range: 0.25 - 0.7 mPa
• Coil Rated Voltage: 3, 5, 6, 12, 24 VDC ; 100, 110, 200, 220 VAC
• 2-Position Double Actuation
• Ambient & Fluid Temp.: 50 degrees C
• Internal Pilot
• L Plug, no connector
• Z type surge suppressor
• Non-locking push style manual override
• Base mounted, no sub-plate port size
• Type 2 Actuation

Technical Literature:

SMC SY Series Datasheet
