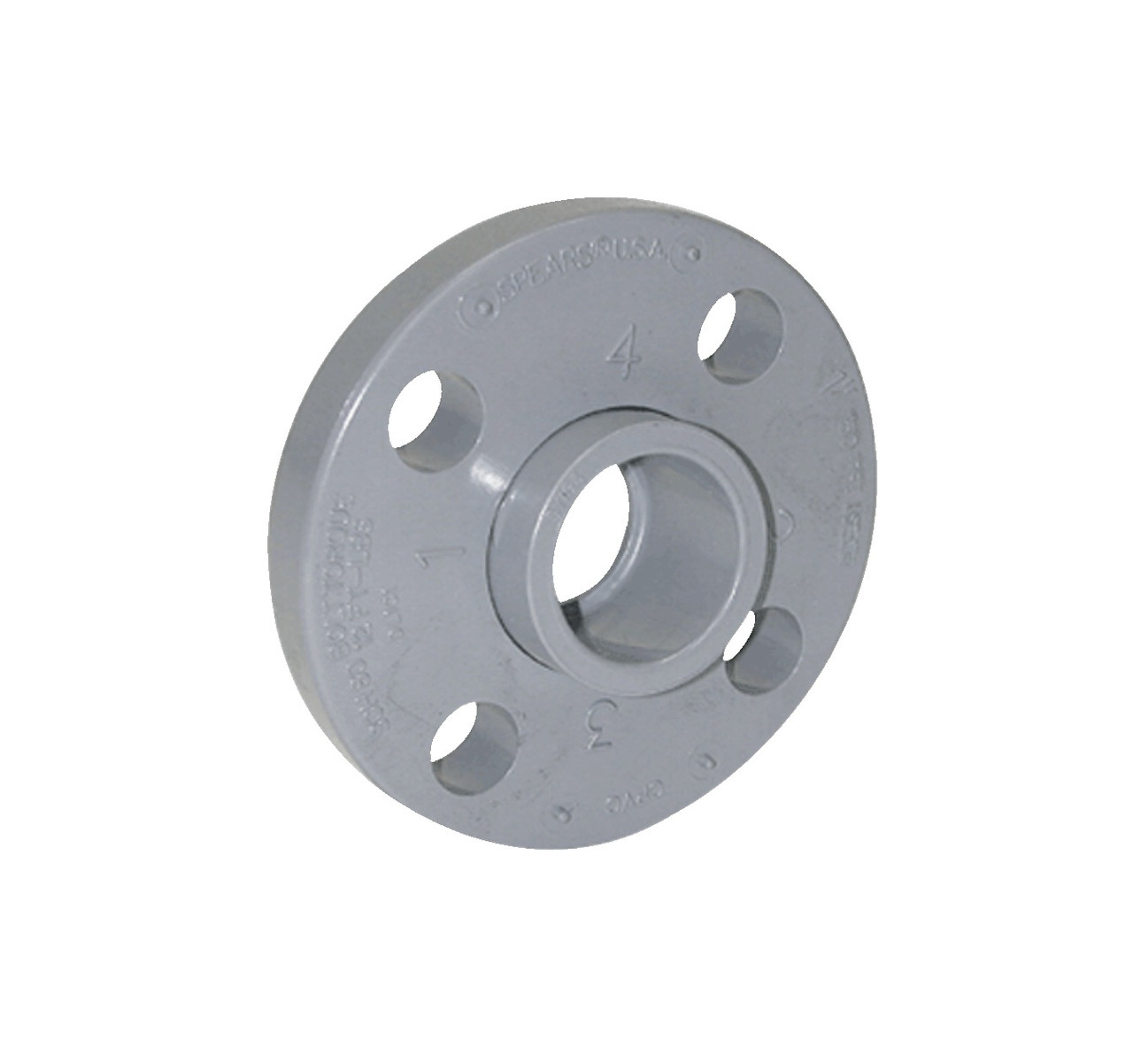

Spears 854-080C Van Stone Flange, 8", SCH 80, SOC

The Spears 854-080C Van Stone Flange eases installation in that it does not require angular alignment with the mating flange, as the flange itself swivels. This eases bolts hole alignment for quicker installation and removal. Use these slip fit, socket welded, 8" CPVC Van Stone Flanges in your process plumbing equipment. Schedule 80 (SCH80) CPVC fittings are commonly used in industrial parts washers in heated stages due to their robust characteristics.

Spears 854-080C Features:

• Schedule 80
• Socket (Van Stone 2 Piece)
• CPVC
• Number of Bolts: 8
• Measurements (See Specification Photo)
  • L = 4-13/32"
  • N = 5/16"
  • R = 1-31/32"
  • M = 9-5/16"
  • O.D. = 13-9/16"
  • Bolt Circle DIA. = 11-3/4"
  • Bolt Size = 3/4"
  • Min Bolt Length = 4-1/2"

Technical Literature:

Spears 854-080C Datasheet
