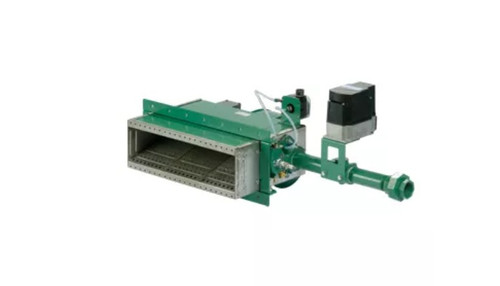

Eclipse AHV20050 Airheat Burner 500,000 BTU Version II

Eclipse patented AH Burner features an integral blower and steel case for unmatched air heating performance.

• Low Nox Co and aldehydes
• Process airstream velocities from 250 to 6000 fpm, no profiling required
• Up to 40:1 gas turndown
• As little as 10% excess air at high fire; no oxygen is required from the process airstream
• Reliable operation - Burns natural gas or propane.
• Integral blower; no oxygen required from the process airstream
• Bottom mounted blower available for tight spaces

Burner Model Configurations:

• Straight with Steel Housing Burner Style
• Integral Packaged Blower Air Supply
• Natural Gas
• Aluminum with 321SS Wings Manifold Type
• Continuous Flange 3" Pos. Mounting
• Right Hand Piping Orientation
• NPT Piping Connection
• No Control Valve
• Direct Spark Ignition Type
• Flame Rod Supervision
• No Control Motor or Bracket
• No Pressure Switch
• 500k Btu/Hr Blower
• 60Hz Power Supply
• 208-230/460/3/60/3600 TENV Blower Motor Type
• Standard Filter
• Right Hand Motor Blower Configuration
