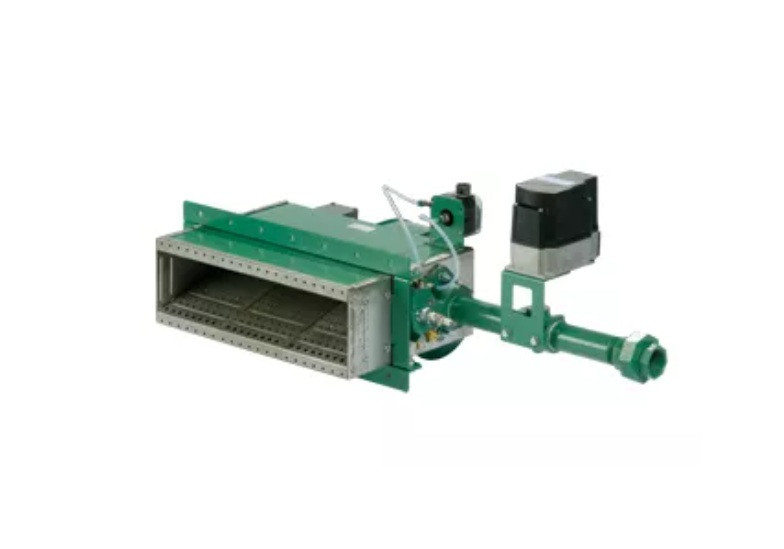

Burner Shown With Optional Fuel Control and Switch

Eclipse AH0200 Airheat Burner 2,000,000 BTU Version II

(PRICING PROVIDED ON BASE MODEL)

Eclipse patented AH Burner features an integral blower and steel case for unmatched air heating performance.

• Low Nox Co and aldehydes
• Process airstream velocities from 250 to 6000 fpm, no profiling required
• Up to 40:1 gas turndown
• As little as 10% excess air at high fire; no oxygen is required from the process airstream
• Reliable operation - Burns natural gas or propane.
• Integral blower; no oxygen required from the process airstream
• Bottom mounted blower available for tight spaces

Burner Model Configurations:

• Straight with Steel Housing Burner Style
• Integral Packaged Blower Air Supply
• Natural Gas
• Aluminum with 321SS Wings Manifold Type
• Continuous Flange 3" Pos. Mounting
• Right Hand Piping Orientation
• NPT Piping Connection
• No Control Valve
• Direct Spark Ignition Type
• Flame Rod Supervision
• No Control Motor or Bracket
• No Pressure Switch
• 2.0MM Btu/Hr Blower
• 60Hz Power Supply
• 208-230/460/3 TEFC Blower Motor Type
• Standard Filter
• Right Hand Motor Blower Configuration
